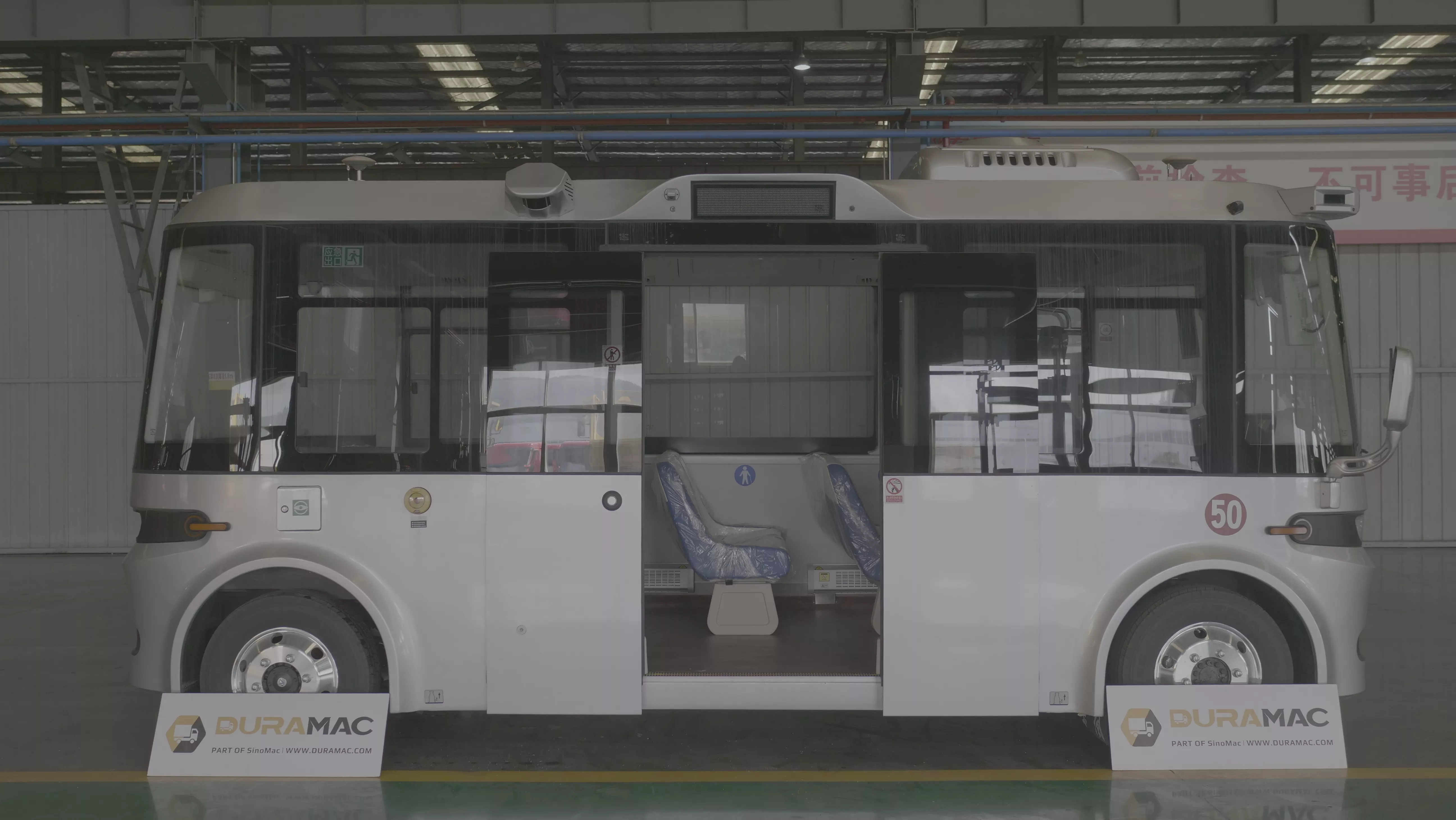

EQ6580CTBEV | Dongfeng Electric Coach

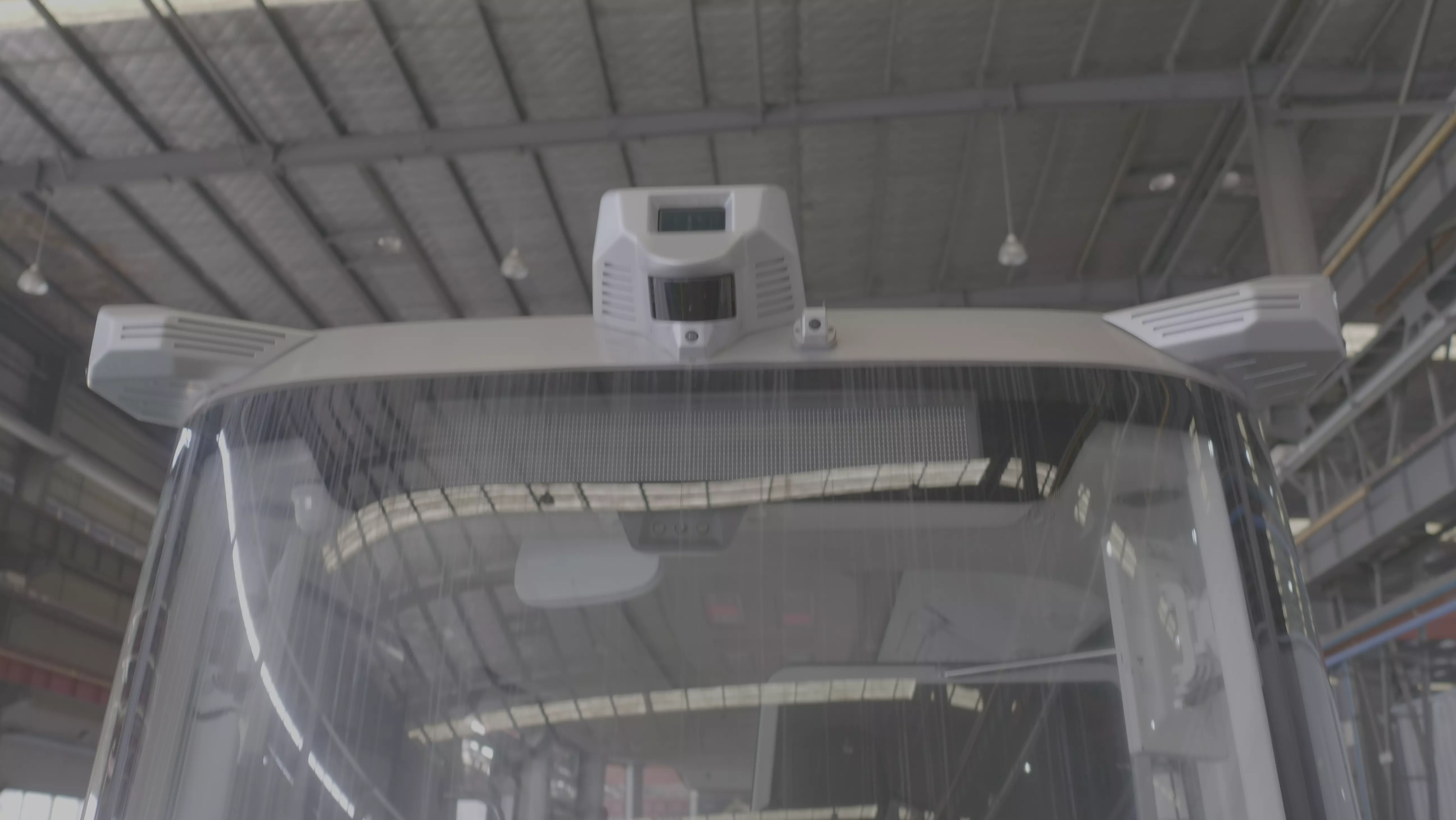

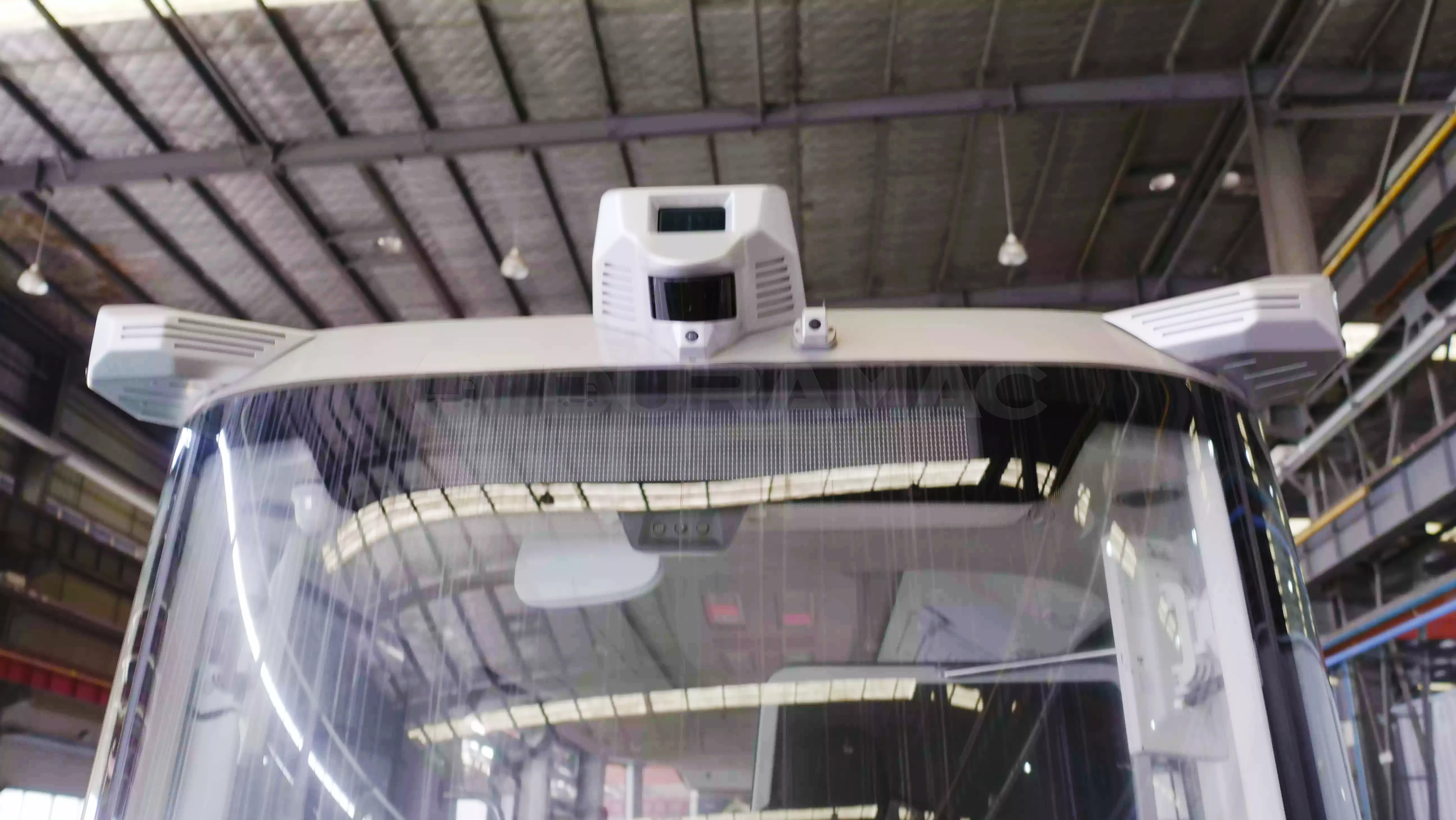

The EQ6580CTBEV was designed by Lu Huanjiao, an engineer at the Technology Center. The project originated from a collaboration with Dongfeng Yuexiang. Since August 2022, it has been developed as a 6-meter pure electric city bus for the urban micro-circulation and short-distance transportation market in industrial parks. The vehicle can be equipped with some autonomous driving modules.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. While the electrification of automobiles is a certain future, DuraMac also gets involved with EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6580CTBEV
It not only achieves zero emissions but also offers high safety and intelligent features. Each vehicle is equipped with an intelligent monitoring and positioning service platform, making vehicle management smarter and more efficient.
Technical Specifications
| Total Length (mm): | 5800 |
| Total Width (mm): | 2100 |
| Total Height (mm): | 2640,2760,2850 |
| Interior Height of Compartment(mm): | 2110 |
| Wheelbase (mm): | 4000 |
| Front Overhang/Rear Overhang (mm): | 900/900 |
| Approach/Departure Angle (°): | 19/19 |
| Maximum Total Mass(kg): | 5300 |
| Rated capacity(persons): | 19/10-13 |
| Maximum Speed (km/h): | 69 |
| Track (Front/Rear) (mm): | 1745/1770 |
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP. The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio. Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment. Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost. The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg. The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.DuraMac
Fast Gear
EV Truck
DANA Axle
Datong Gear
Crane Trucks
- Electric Coach Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6580CTBEV | 5800 | 2100 | 2640/2760/2850 | 69 | 5300 |
| EQ6690CTBEV1 | 6945 | 2340 | 2940/2985/3090 | 69 | 9900 |
| EQ6603LTBEV | 5985 | 2260 | 2860(2910)/3025 | 100 | 8500 |
| EQ6690CTBEV | 6945 | 2340 | 2940/2985/3090 | 69 | 9900 |
| ——END—— | |||||
Basic information of Dongfeng EQ6580CTBEV motor | |||
| Motor Model | TZ228XS035DN01 | Motor Manufacturer | Dongfeng Dana Axle Co., Ltd. |
| Position/Fuel Type | Rear-mounted/Pure Electric | Motor Type | Permanent Magnet Motor |
| Motor Rated/Peak Power (kW) | 60/115 | Rated/Peak Torque (N·m) | 135/350 |
| Battery Capacity kWh/Voltage V | CATL 59.44/418.6 | Driving Range (40km/h Constant Speed) | 300 |
| Vehicle Announcement and Batch | 366 | Recommended/Exemption Catalogue | – |
| National Subsidy Grade and Amount (10,000 Yuan) | – | ||
| ——END—— | |||
Standard / Optional Configuration | ||
| Item | Standard Configuration | Optional Configuration |
| Frame Type | Full-bearing frame, low-floor with front tow hook | — — |
| Drive Type | Direct motor drive | — — |
| Front Axle | 2T, disc brake | — — |
| Rear Axle | 3.5T, electric drive rear axle, disc brake | — — |
| Suspension | Front independent suspension, coil spring shock absorber, rear multi-leaf non-independent suspension; | — — |

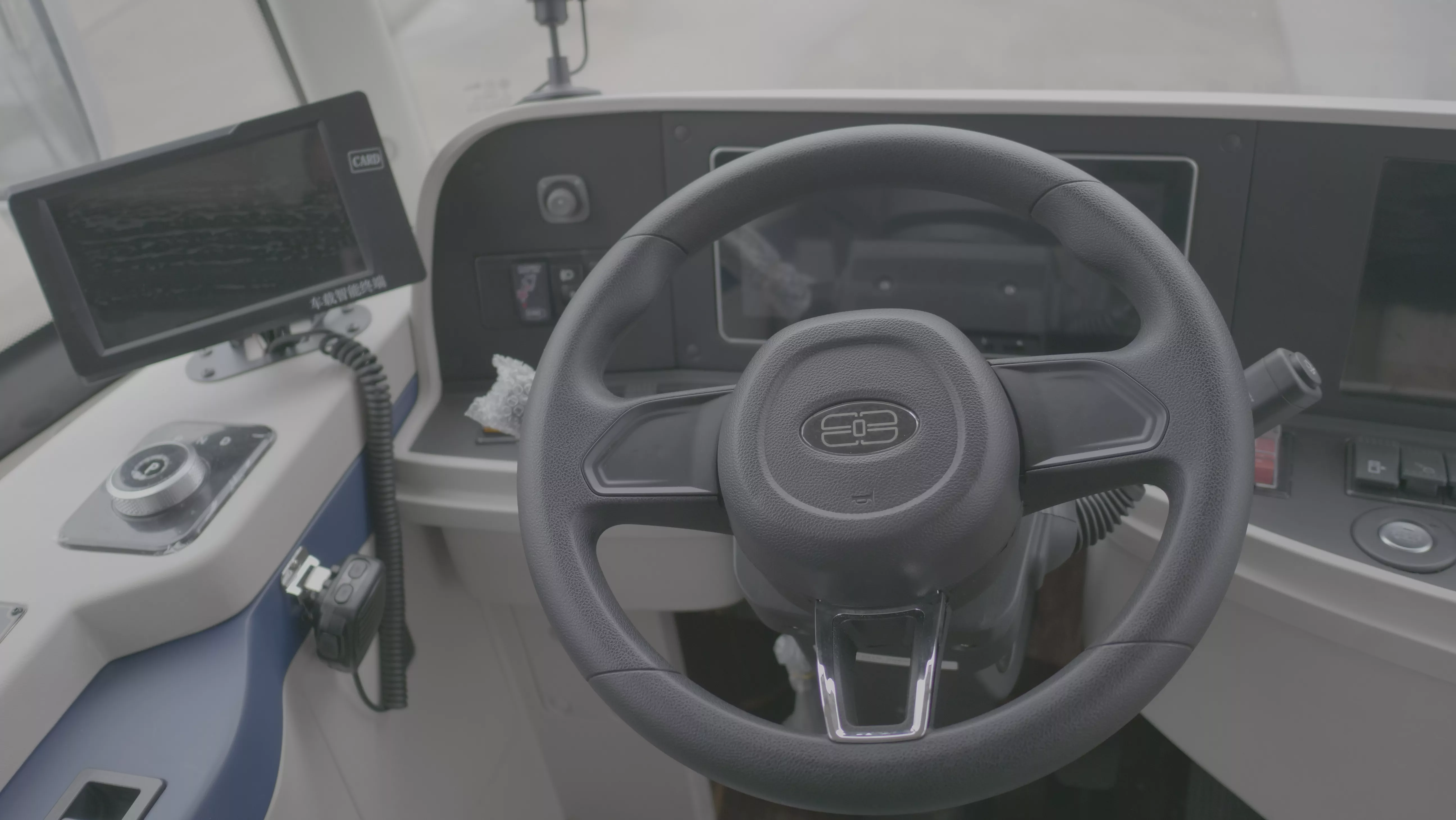

| Steering | Electric power steering, electric recirculating ball X-EPS | — — |
| Braking | Electronic power hydraulic braking system, Ebooster electronic braking, ESC vehicle stability system, EPB electronic handbrake | — — |

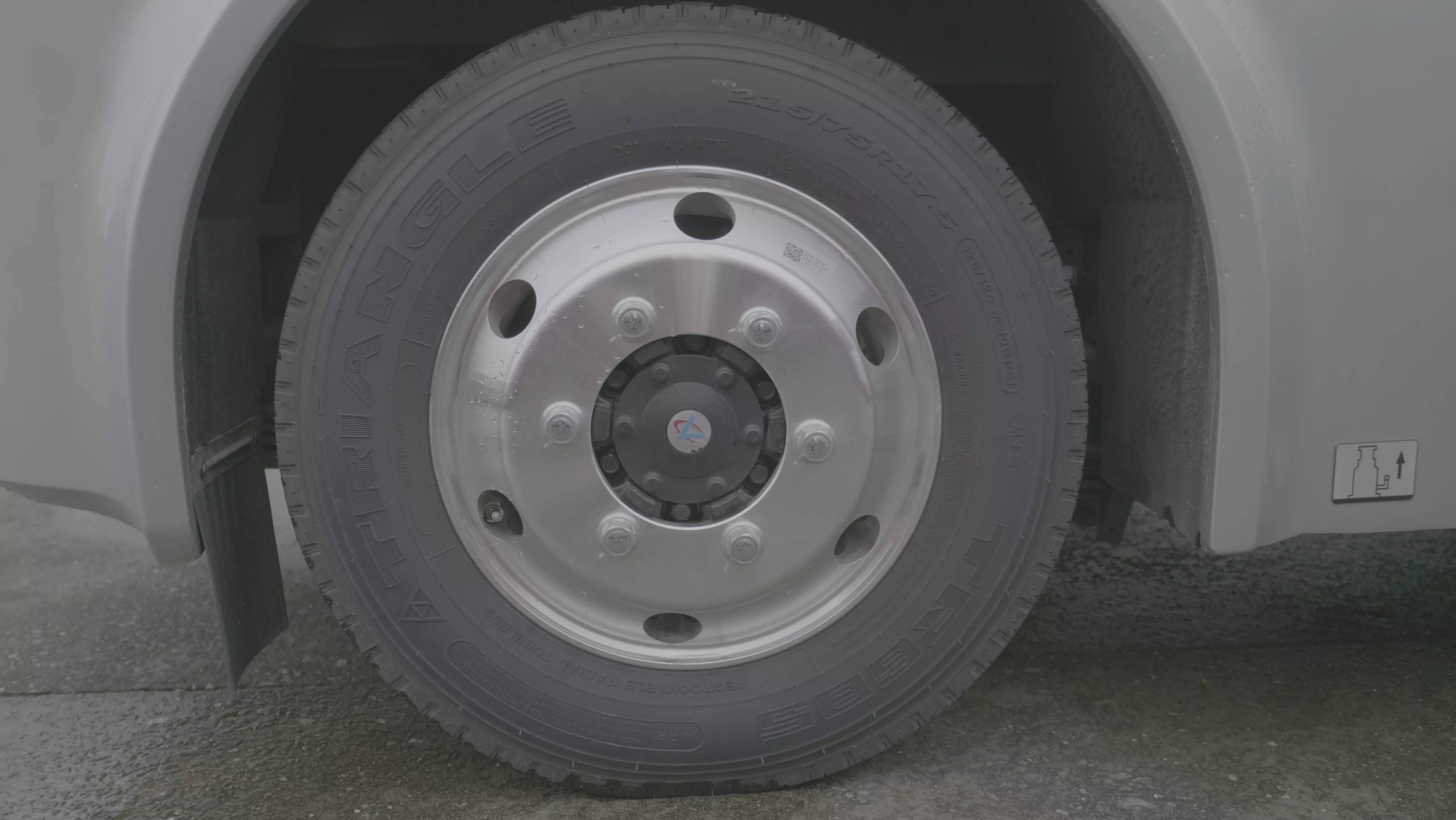

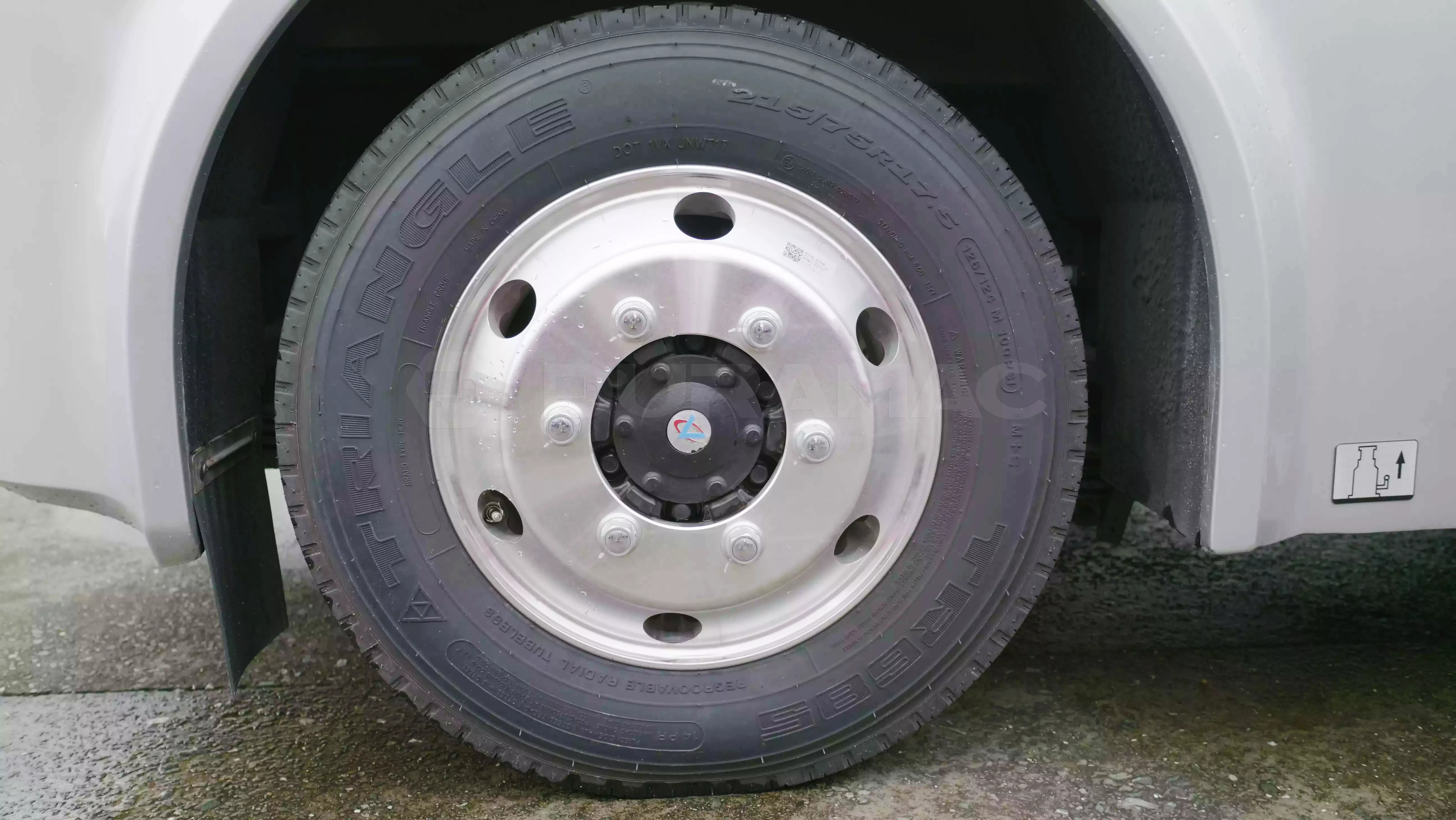

| Tyre/Rim | 215/75R17.5-14PR, stainless steel rim | — — |
| Others | Electric fan | — — |
| ——END—— | ||
Chassis Parameters and Configuration | ||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Full-bearing, high-strength steel assembly welding, first-class step. Front and rear wall panels are formed by steel plate stamping. The whole vehicle frame is cathodic electrophoresed, and the whole vehicle is foamed. | — — |

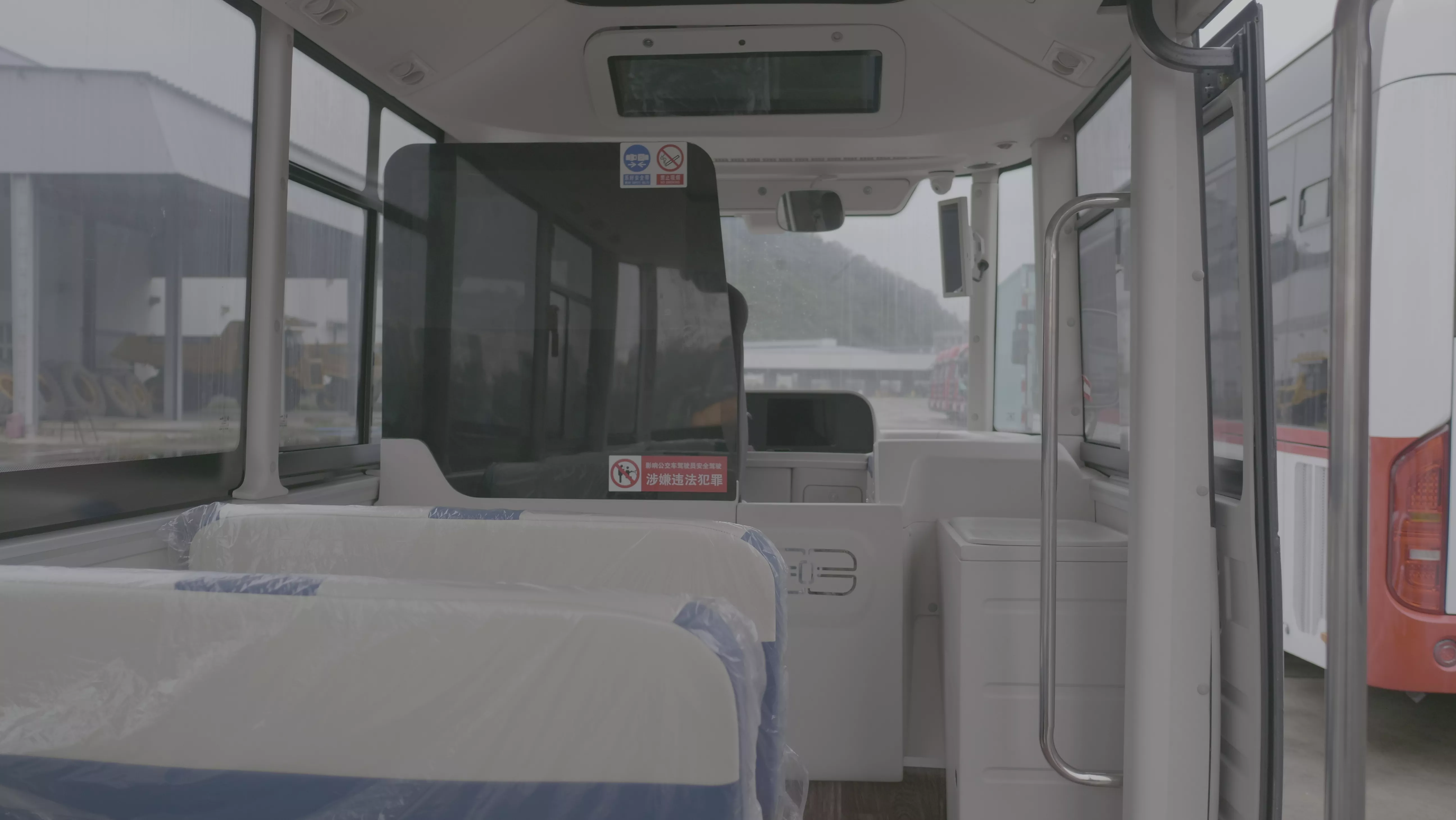

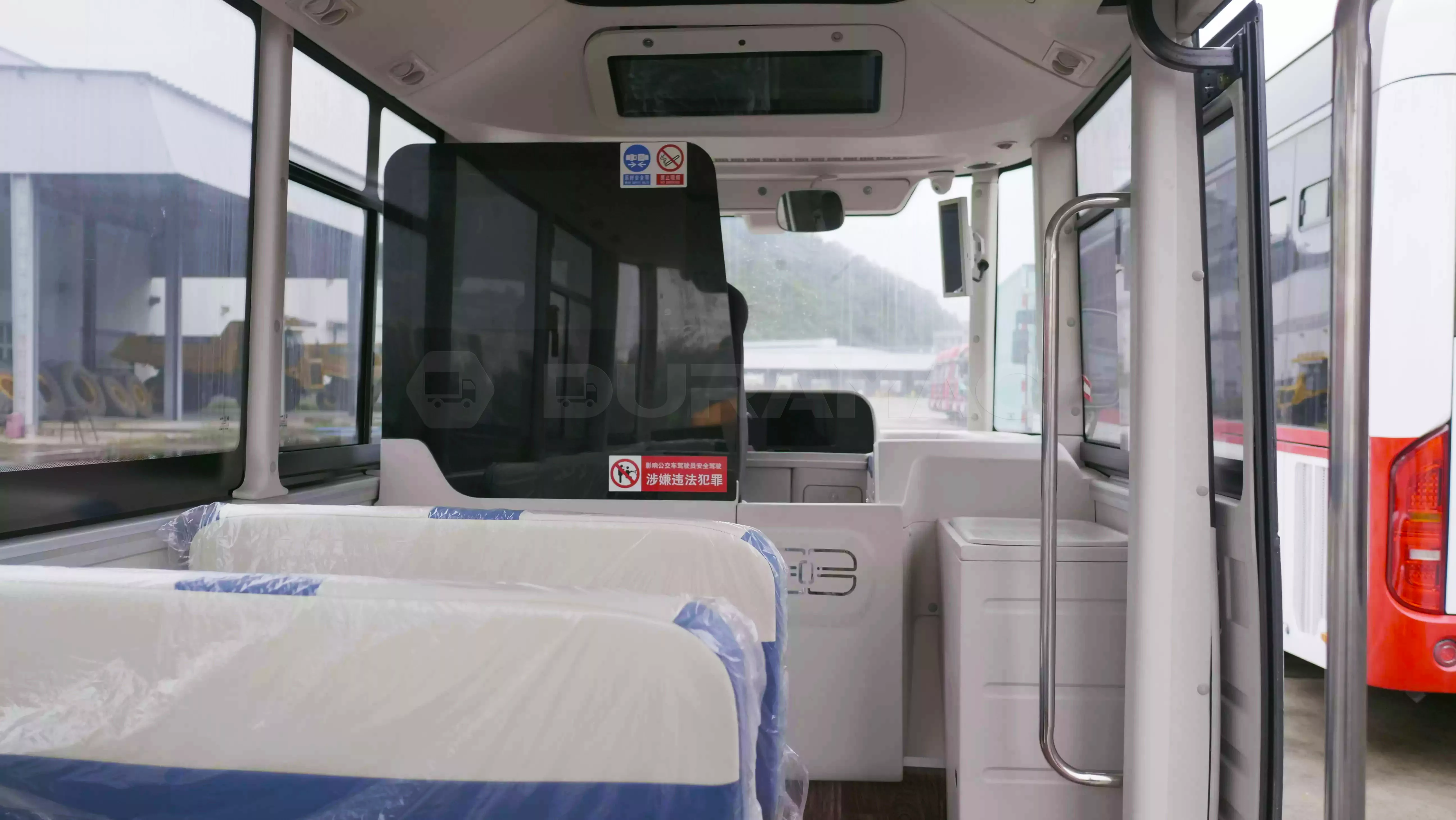

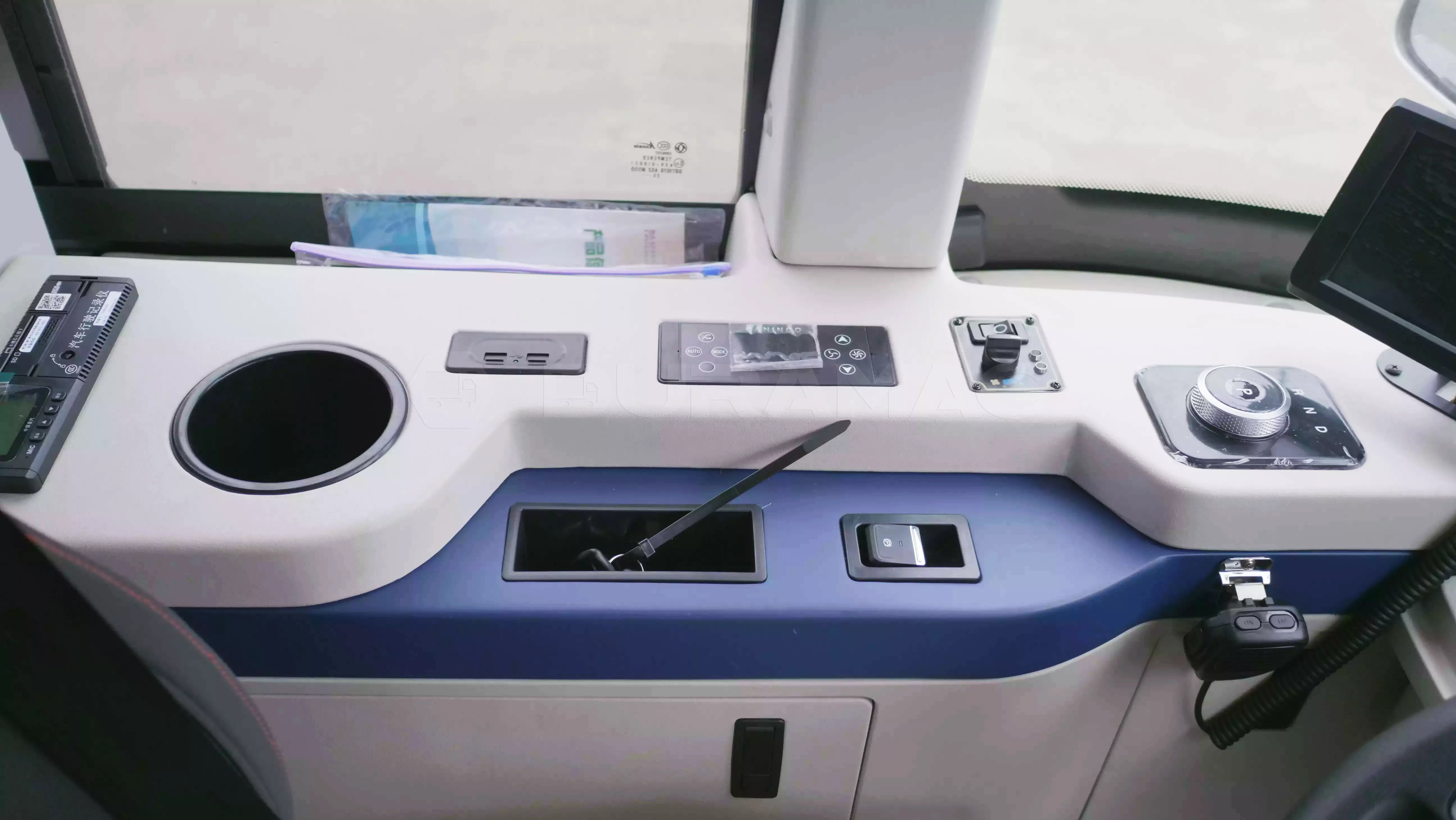

| Interior | Formed front and rear roof, linen air duct, driver’s enclosure, integral foamed instrument panel, stainless steel handrail, PVC skin ceiling, 4 ceiling lights, LED blue light strip around the top. | — — |
| Floor | Formed floor, quartz sand anti-slip and wear-resistant floor leather, aluminum alloy press strip. | — — |
| Route Sign | Front, middle and rear LED route signs. | — — |

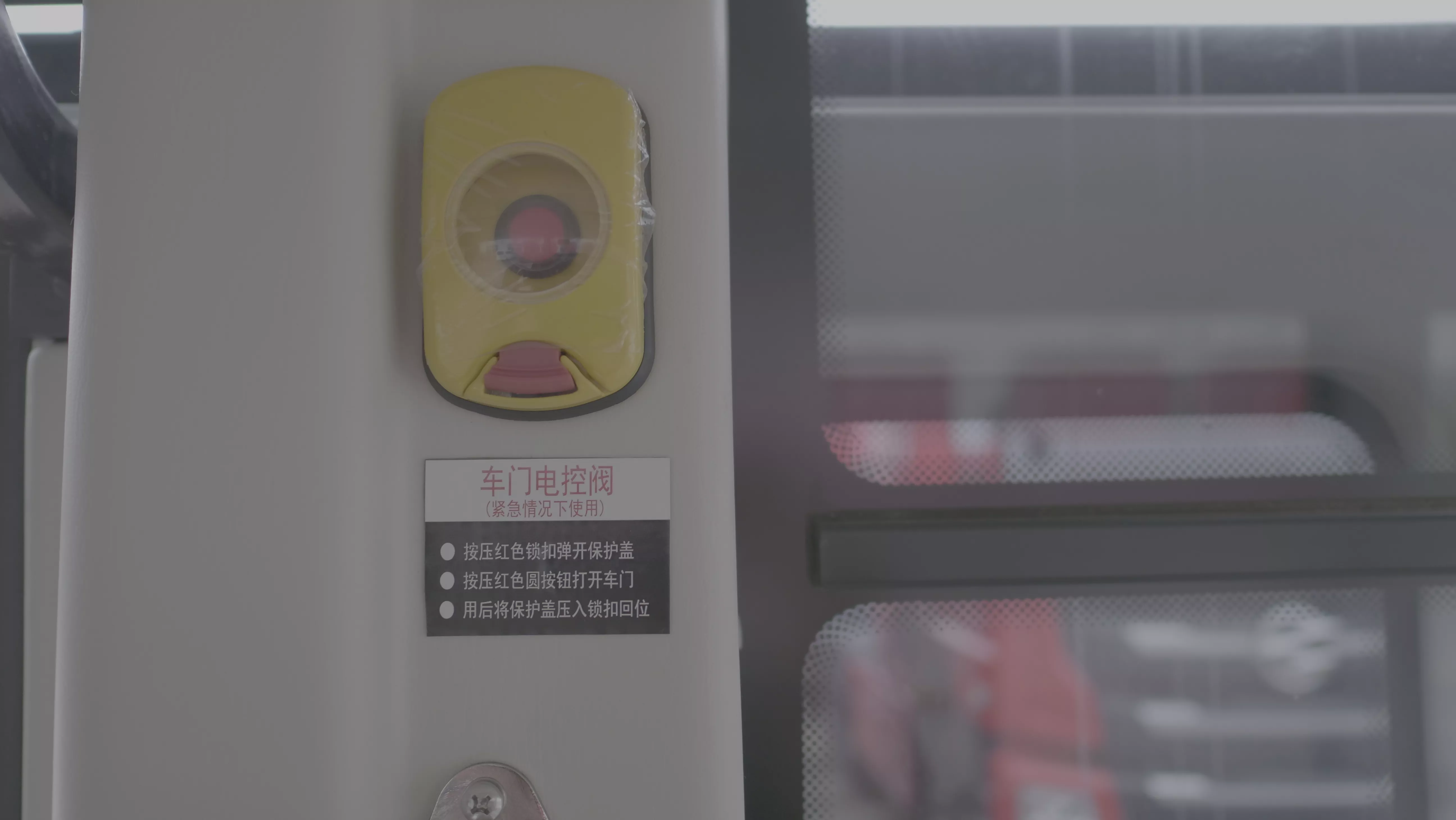

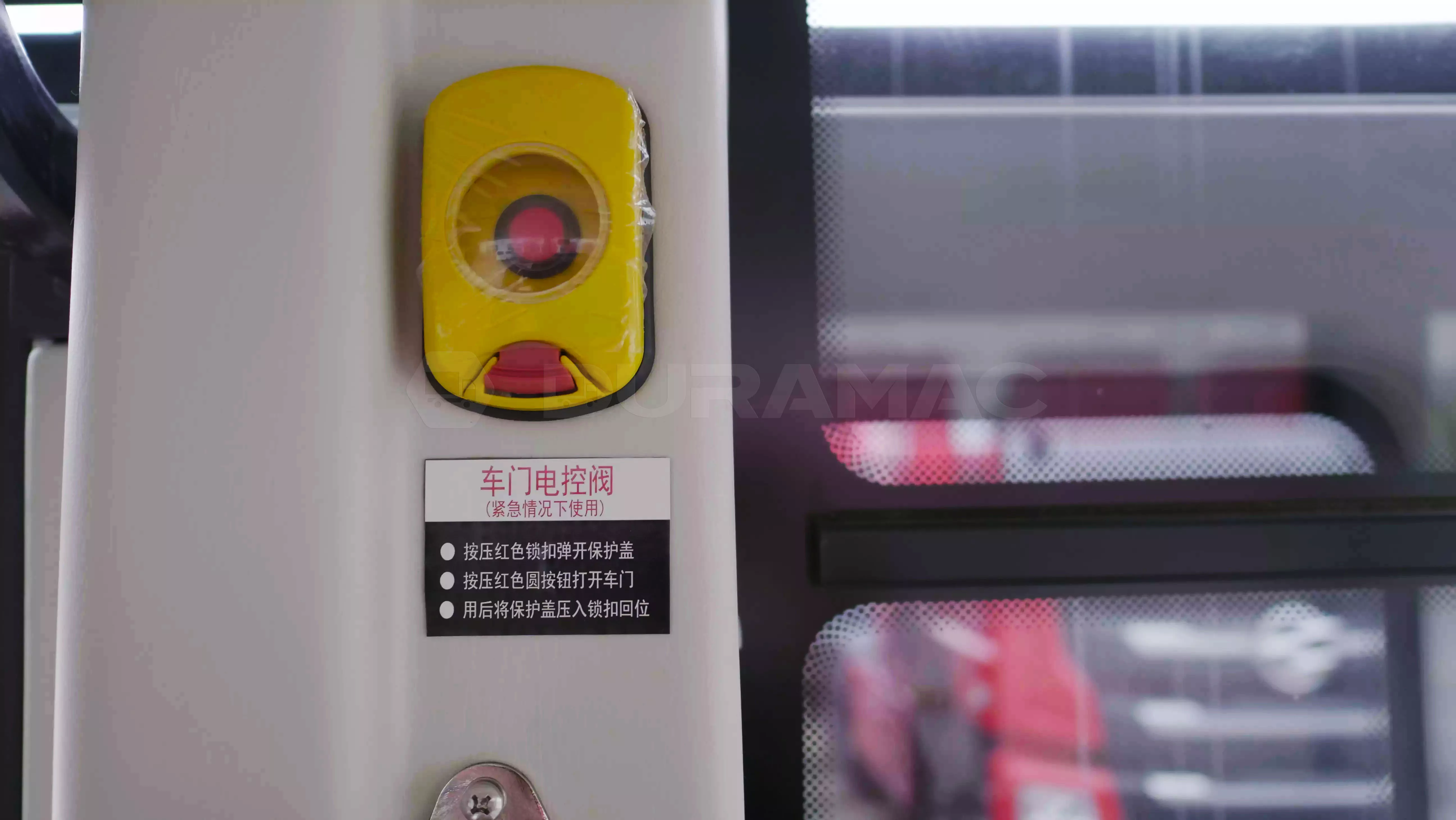

| Doors and Door Pumps | Middle electric plug door, passenger door emergency manual switch. | — — |
| Glass | Front windshield laminated glass, driver’s window is embedded sliding window, side windows are embedded sliding windows, passenger door glass is white glass. | — — |
| Rearview System | Electrically adjustable exterior rearview mirrors, interior rearview mirror, electronic rearview mirror. | — — |
| Air Conditioning System | Roof-mounted single-cooling air conditioner (11kW). | — — |
| Heating System | 2 PTC wall-mounted radiators. | — — |
| Defroster | MP3 defroster. | — — |
| Audio-Visual System | MP3 player with microphone jack, USB charging port, in-vehicle central control screen. | 28-inch passenger guide screen, 32-inch integrated information screen. |

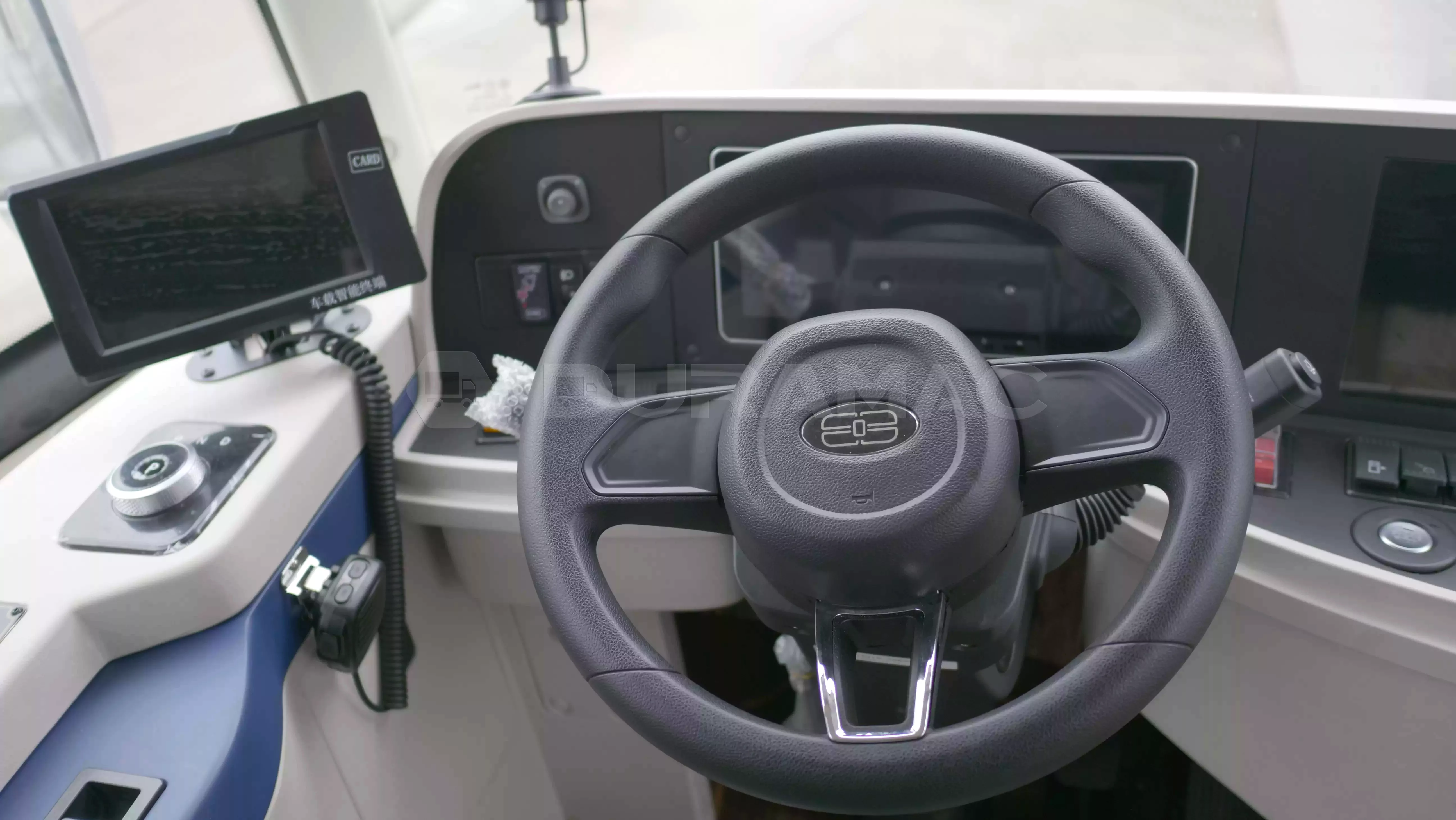

| Satellite Positioning System | Beidou satellite positioning driving recorder (with +5 probes +7-inch LCD display (1. Monitor driver, 2. Monitor passenger door, 3. Monitor passenger area, 4. Monitor front road, 5. Reverse monitoring)). | 360-degree surround camera outside the vehicle, DMS driver behavior detection, dispatch screen. |
| Lamps | Front combination headlight + rear combination light + front decorative light (with breathing light) + license plate light + rear fog light + reverse light + side turn signal. | — — |
| Wiper | Single-arm wiper. | — — |
| Compartment Door | Front and rear steel plate stamped compartment doors. | — — |

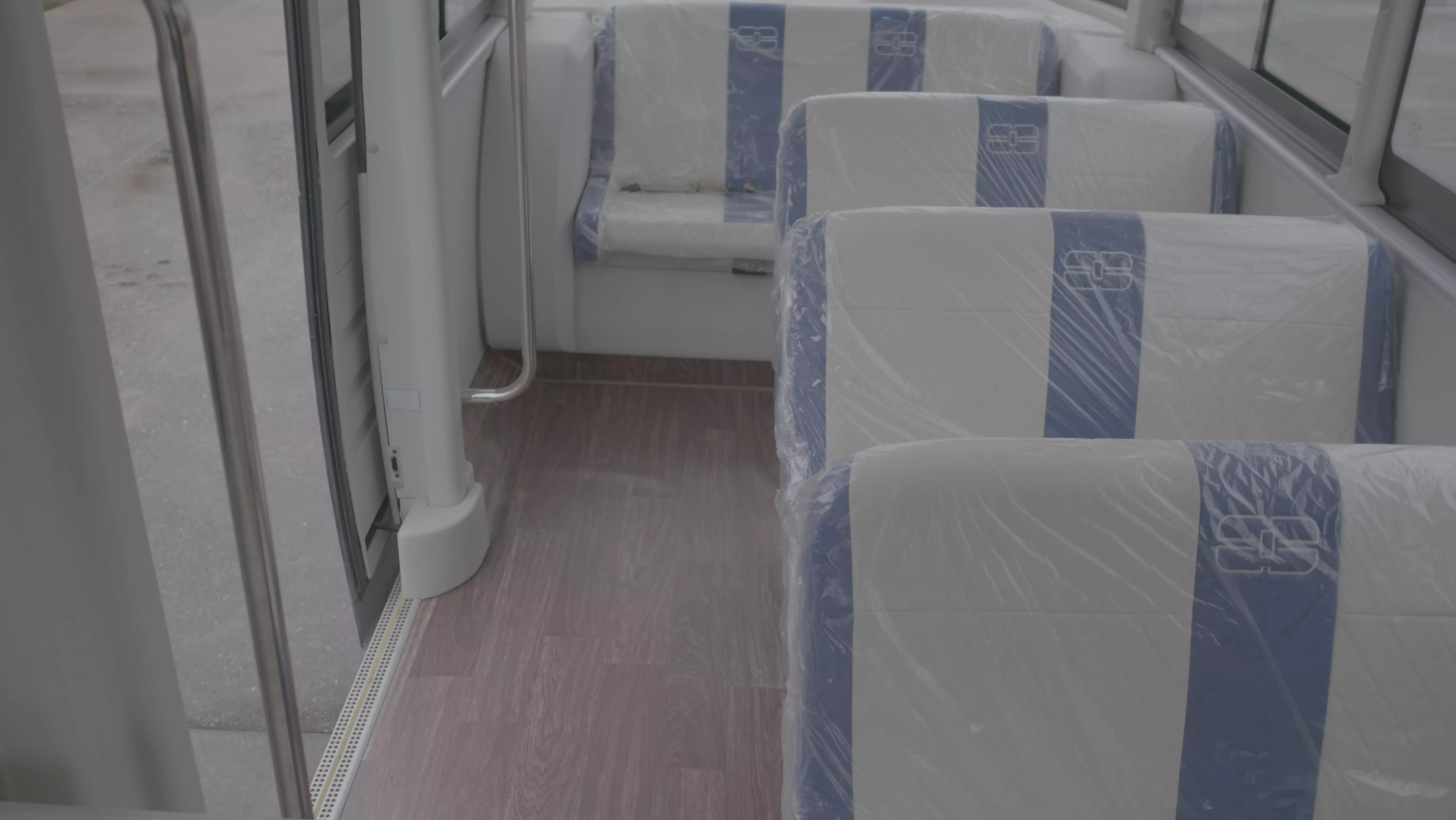

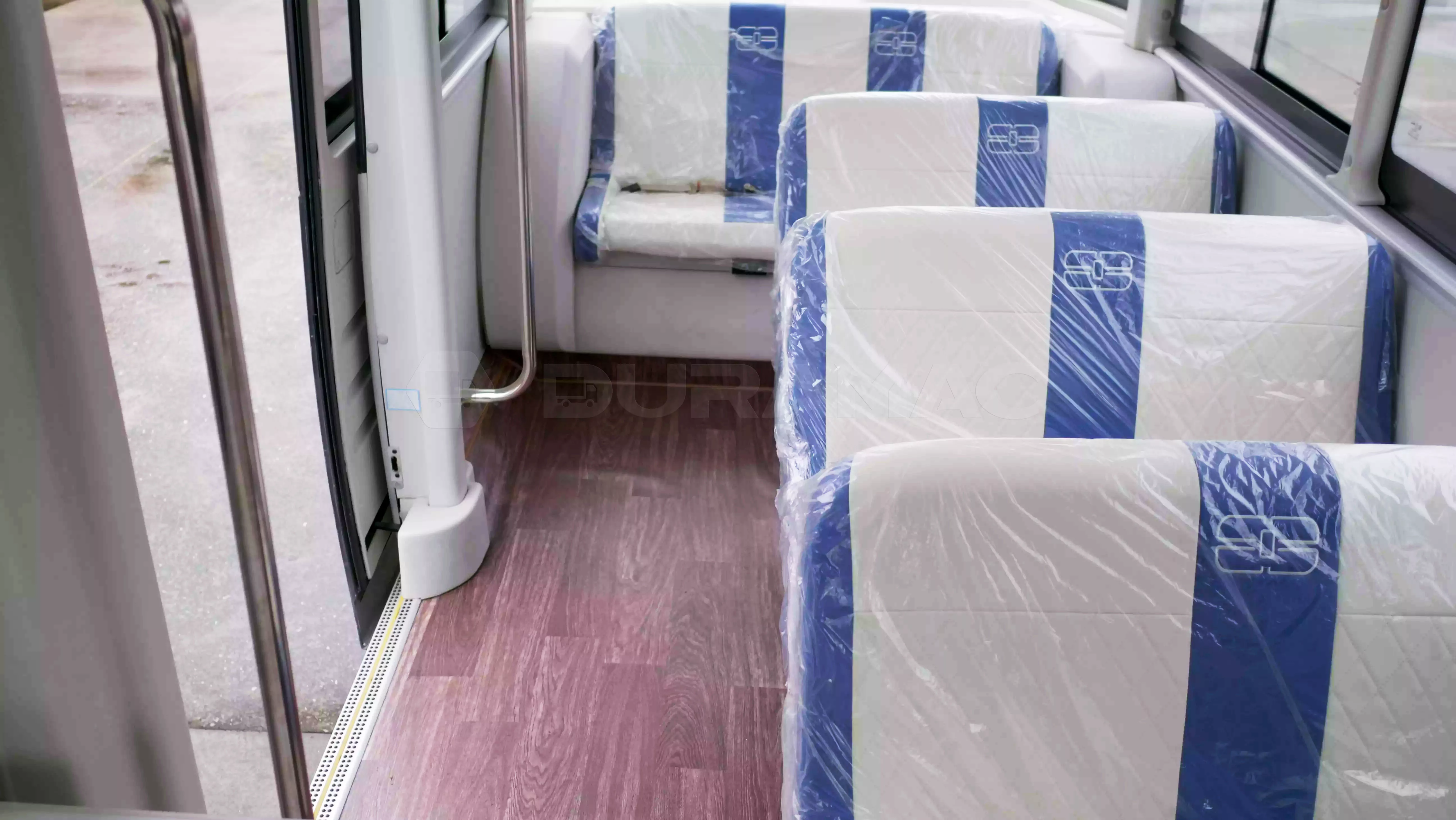

| Seats | Mechanically damped driver’s seat, driver’s seat belt alarm, European-style leather soft-padded bus seats, standard same-color 9+1, each row of passenger seats is equipped with a USB port on the side. | Soft-padded business seats. |
| Paint | Metallic paint, patterns and colors according to customer requirements. | — — |

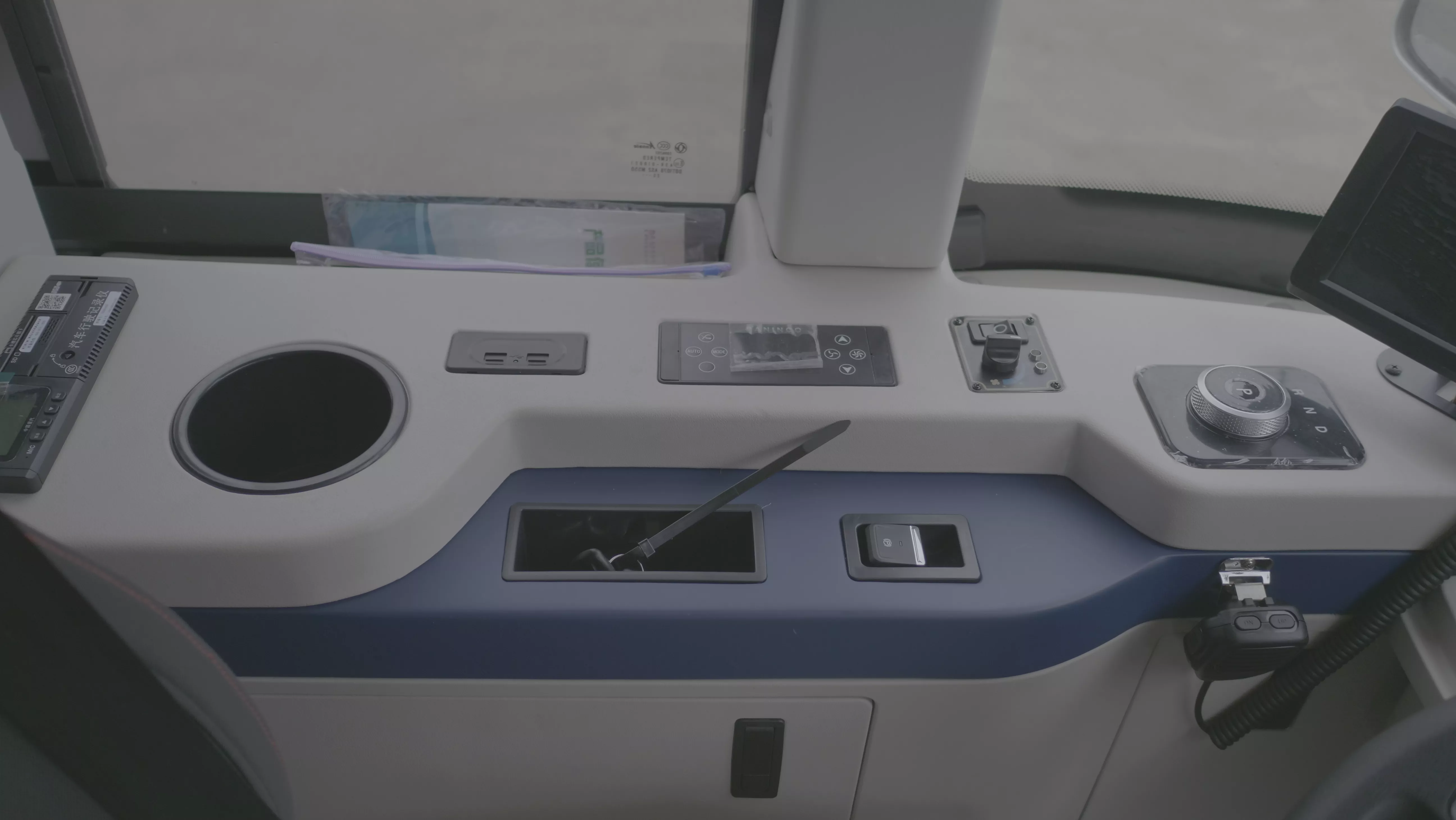

| Instrument | CAN instrument with one vehicle module. | — — |
| Others | One 4KG fire extinguisher, 5 safety hammers, emergency switches for interior and exterior passenger doors, 3 electric compartment integrated fire extinguishers, low-speed alarm, trash can and bracket, refrigerator rack, umbrella rack. | Refrigerator, electric telescopic step, 55-inch side large screen, Chinese dragon glass sunshade film, wood-grain floor leather. |
| ——END—— | ||
