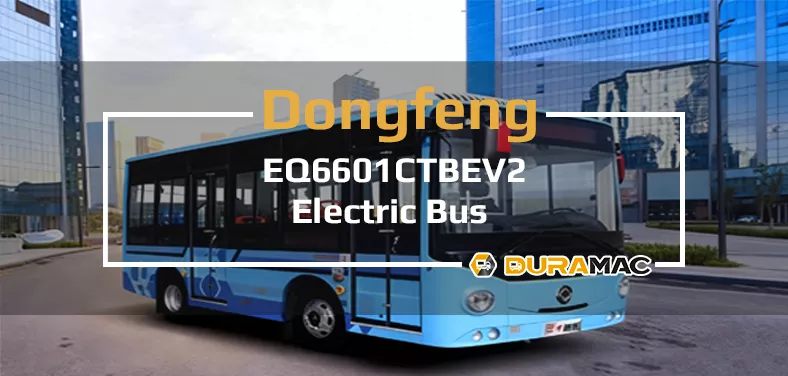

EQ6601CTBEV2 | Dongfeng electric bus
The EQ6601CTBEV2 was designed by Chen Qi, an engineer at the Technology Center, and has been independently designed and developed since November 2018. It is a 6-meter pure electric city bus developed for the urban short-distance transportation market.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. While the electrification of automobiles is a certain future, DuraMac also gets involved with EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6601CTBEV2
Technical Specifications
| Total Length (mm): | 6020 |
| Total Width (mm): | 2100，2160 |
| Total Height (mm): | 2770/2820/2910 |
| Interior ceiling height(mm): | 1950 |
| Wheelbase (mm): | 2800 |
| Front Overhang/Rear Overhang (mm): | 1720/1500 |
| Approach/Departure Angle (°): | 10/10 |
| Rated Total Mass (kg): | 8500 |
| Rated capacity(persons): | 33/10-16 |
| Maximum Speed (km/h): | 69 |
| Track width(mm): | 1750/1586，1670 |
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP. The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio. Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment. Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost. The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg. The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.DuraMac
Fast Gear
EV Truck
DANA Axle
Datong Gear
Crane Trucks
- Electric Bus Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6601CTBEV2 | 6020 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6580CTBEV | 5800 | 2100 | 2640,2760,2850 | 69 | 5300 |
| EQ6105CTBEV9 | 10490 | 2500 | 3020/3060/3260 | 69 | 18000 |
| EQ6603CTBEV1 | 5990 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6810CTBEV6 | 8060 | 2260 | 2860,2990 | 69 | 12500 |
| EQ6850CTBEV2 | 8540 | 2500 | 3050,3090,3250 | 69 | 14000 |
| EQ6105CTBEV8 | 10490 | 2500 | 3020/3060/3260 | 69 | 18000 |
| EQ6810CTBEV4 | 8060 | 2260 | 2860,2990 | 69 | 12500 |
| ——END—— | |||||
Basic information of Dongfeng EQ6601CTBEV2 motor | |||
| Motor Model | TZ290XSA011, TZ290XS060956 | Motor Manufacturer | Jingjin Motor, Fujian Wanrun |
| Position/Fuel Type | Rear-mounted/Pure Electric | Motor Type | Permanent Magnet Synchronous Motor |
| Motor Rated/Peak Power (kW) | 60/125, 60/120 | Rated/Peak Torque (N.m) | 450/1000, 360/950 |
| Battery Capacity (kWh)/Voltage (V) | CATL 95.25/550.62 | Driving Range (40km/h Constant Speed Method) | 330km |
| Vehicle Announcement and Batch | 354 | Recommended/Exemption Catalogue | Batch 6/26 of 2020 |
| National Subsidy Grade and Amount (10,000 Yuan) | – | ||
| ——END—— | |||
Standard / OptionalConfiguration | ||
| Item | Standard Configuration | Optional Configuration |
| Front Axle | 2.3T | — — |
| Rear Axle | 4.2T | — — |
| Suspension | Multi-leaf Spring, Front: 3/Rear: 3 | — — |
| Shock Absorber | Telescopic Shock Absorber | — — |
| Steering | Steering Wheel, Hydraulic Power Steering | — — |
| Drive Shaft | 1 Section | — — |
| Brake | Front Disc and Rear Drum | Front Disc and Rear Disc |
| Braking System | Air Brake, Dryer, Condenser, ABS, Automatic Adjusting Arm, Brake Shoe Wear Alarm | — — |
| Air Compressor | Oil-free Piston Type | — — |
| Tire | 205/75R17.5-14PR (No Spare Tire) | 215/75R17.5-14PR, Tire Pressure Monitoring |
| Others | Electric Fan | Central Lubrication |
| ——END—— | ||
Chassis Parameters and Configuration | ||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Semi – integral, welded with high – strength section steel, front and rear wall panels formed by stamping | — — |
| Interior | Air – conditioned interior, vehicle – wide handrails, driver’s area protective isolation facilities | Aluminum alloy handrails, hanging rings |
| Floor | Bamboo – woven floor | PVC Floor |
| Route Sign | / | Light box route sign, LED route sign |
| Doors and Door Pumps | Front and middle pneumatic folding doors with anti – pinch device | — — |
| Side Windows | Driver’s window is aluminum – framed sliding window, the rest are embedded sliding windows, color F green | — — |
| Windshield | Laminated front windshield, tempered rear windshield | — — |
| Rearview System | Steel – framed asymmetric manual rearview mirror | — — |
| Air Conditioning System | —— | Roof – mounted electric air conditioner |
| Heating System | —— | — — |
| Defroster | Electric defroster | — — |
| Audio – Visual System | MP3 player with microphone jack, USB charging port | — — |
| Satellite Positioning System | Beidou satellite positioning driving recorder + 7 probes + 7 – inch LCD display (1. Monitor the driver, 2. Monitor the boarding door, 3. Monitor the passenger area from front to back, 4. Monitor the road ahead, 5. Reverse monitoring, 6. Alighting door, 7. Monitor the accelerator pedal) | — — |
| Lamps | Front and rear split lamps, front and rear fog lamps, side turn signals, electric height adjustment device for low beam headlights | — — |
| Wiper | Opposed wiper | — — |
| Hatch | Steel plate stamped hatch | — — |
| Seats | Shock – absorbing driver’s seat with up and down adjustment, ordinary bus seats, driver’s seat seatbelt alarm | — — |
| Paint | Domestic plain paint | Metallic paint |
| Instrument | CAN instrument with one vehicle module | — — |
| Others | 2 pieces of 4KG fire extinguishers, 5 safety hammers, emergency switches for interior and exterior passenger doors, DC890A skylight, 2 pieces of 6-QW-80, half-roll front sunshade curtain, on-board terminal, 3 integrated fire extinguishers in electrical compartments, low-speed alarm, quartz sand colored spot floor leather, foot pad under the brake pedal. | Side curtains, DC890B ventilation skylight, alighting doorbell, coin acceptor, electronic stop announcer, quartz sand wear-resistant floor leather, driver’s fan. |
| ——END—— | ||
