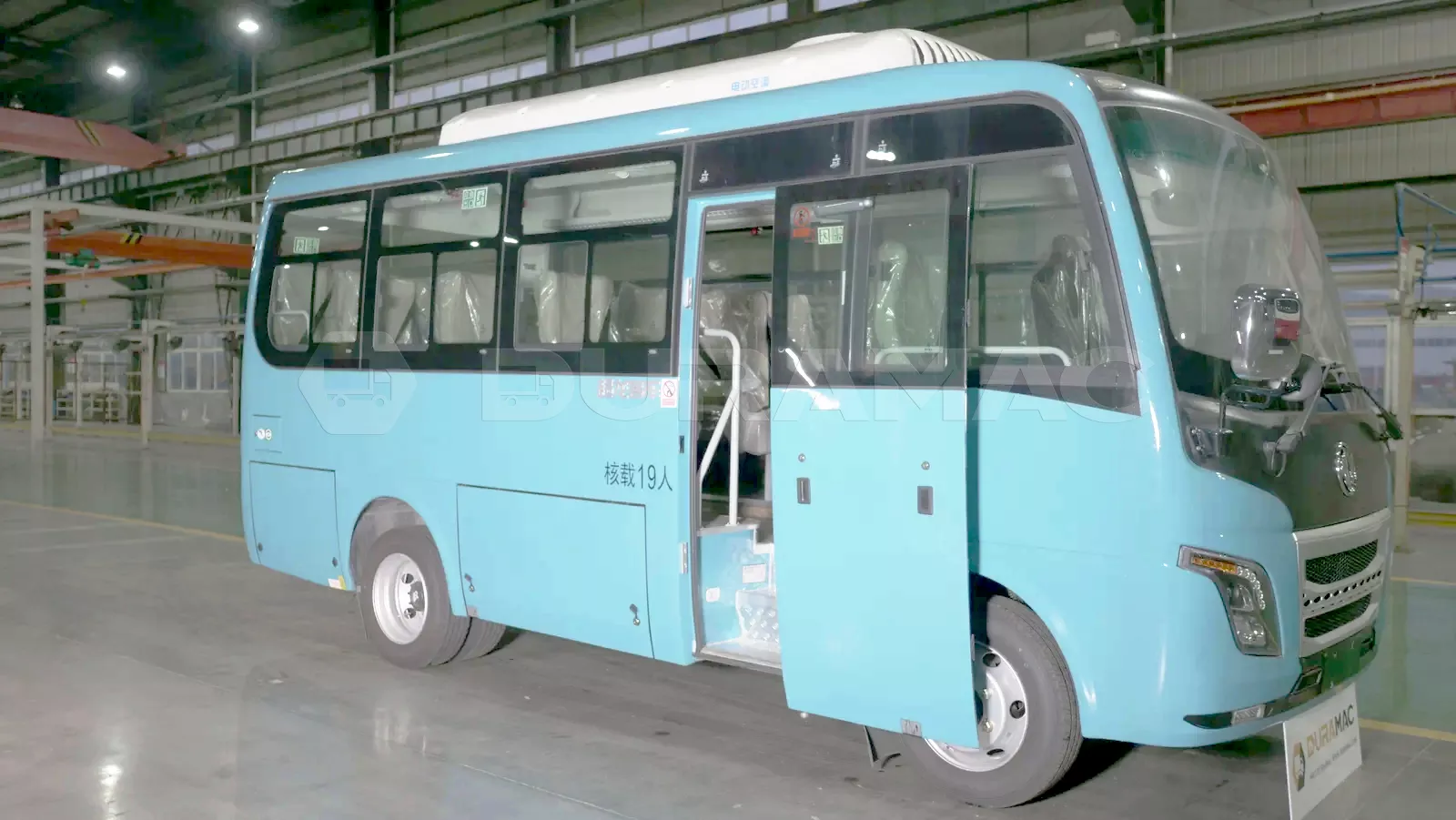

EQ6603LTBEV is a 6-meter pure electric city bus (about 5990mm in length) produced by Dongfeng Special Automobile Chaolong Bus, designed for short-distance urban and rural passenger transport. This model is equipped with an efficient pure electric power system, with a curb weight of about 4300-4500kg, and a rated passenger capacity that can flexibly adapt to small and medium-sized transportation needs (the specific number of passengers has not been disclosed, but the same series of EQ6603LT highway buses won the title of “Urban and Rural Bus Star” in 2019-2020). Its core advantages include low operating costs and high adaptability, standard environmental protection and energy-saving technology, an optional air suspension system, and a balance between driving smoothness and passability in complex road conditions. It is one of the representative products under the trend of “large to small” urban and rural public transportation.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. At the same time, the electrification of automobiles is a certain future; Duramac also gets involved with EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6603LTBEV
Large storage space: The extra-large middle luggage compartment can meet the needs of passengers carrying a large amount of luggage.
Spacious interior space: It meets the needs of both small and high-level seat space layouts.
The body adopts a streamlined design, a simple and elegant appearance, and a panoramic front windshield, and the whole vehicle is stylish and beautiful.
Technical Specifications
| Total Length (mm): | 5985 |
| Total Width (mm): | 2260 |
| Total Height (mm): | 2860(2910)/3025 |
Interior ceiling height(mm): | 1910 |
| Wheelbase (mm): | 3300 |
| Front Overhang/Rear Overhang (mm): | 985/1700 |
| Approach/Departure Angle (°): | 22/13 |
| Rated Total Mass (kg): | 8500 |
| Height of First Step (mm): | 400 |
Rated capacity(persons): | 10-19 |
| Maximum Speed (km/h): | 100 (rate-limiting) |
Track width(mm): | 1810/1670 |
- Electric Coach Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6603LTBEV | 5985 | 2260 | 2860(2910)/3025 | 100 | 8500 |
| EQ6690CTBEV | 6945 | 2340 | 2940/2985/3090 | 69 | 9900 |
| ——END—— | |||||
Basic information of Dongfeng EQ6603LTBEV motor | |||||
| Motor Model | TZ260XSLC700C | Engine Manufacturer | |||
| Location/Fuel Type | Rear-mounted/Pure Electric | Motor type | Permanent Magnet Synchronous Motor | ||
| Motor Rated/Peak Power (kw) | 70/155 | Rated/peak torque (N.m) | 500/1150 | ||
| Total battery capacity (kWh)/voltage(V) | Ningde Era 105/608.5 | Driving range (40km/h constant speed method) | 345 | ||
| ——END—— | |||||
Standard / Optional Configuration | |||||
| Bearing form | Fully loaded | Optional configuration | |||
| Front Axle | Dongfeng Dena Bridge 16″ | — — | |||
| Rear axle | Dongfeng Dena Bridge 16″ | — — | |||
| Suspension | Less leaf springs, front 3/rear 3 | 9/11 | |||
| Shock absorber | ZF tube shock absorber | — — | |||

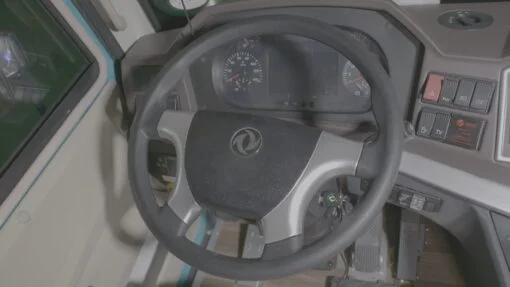

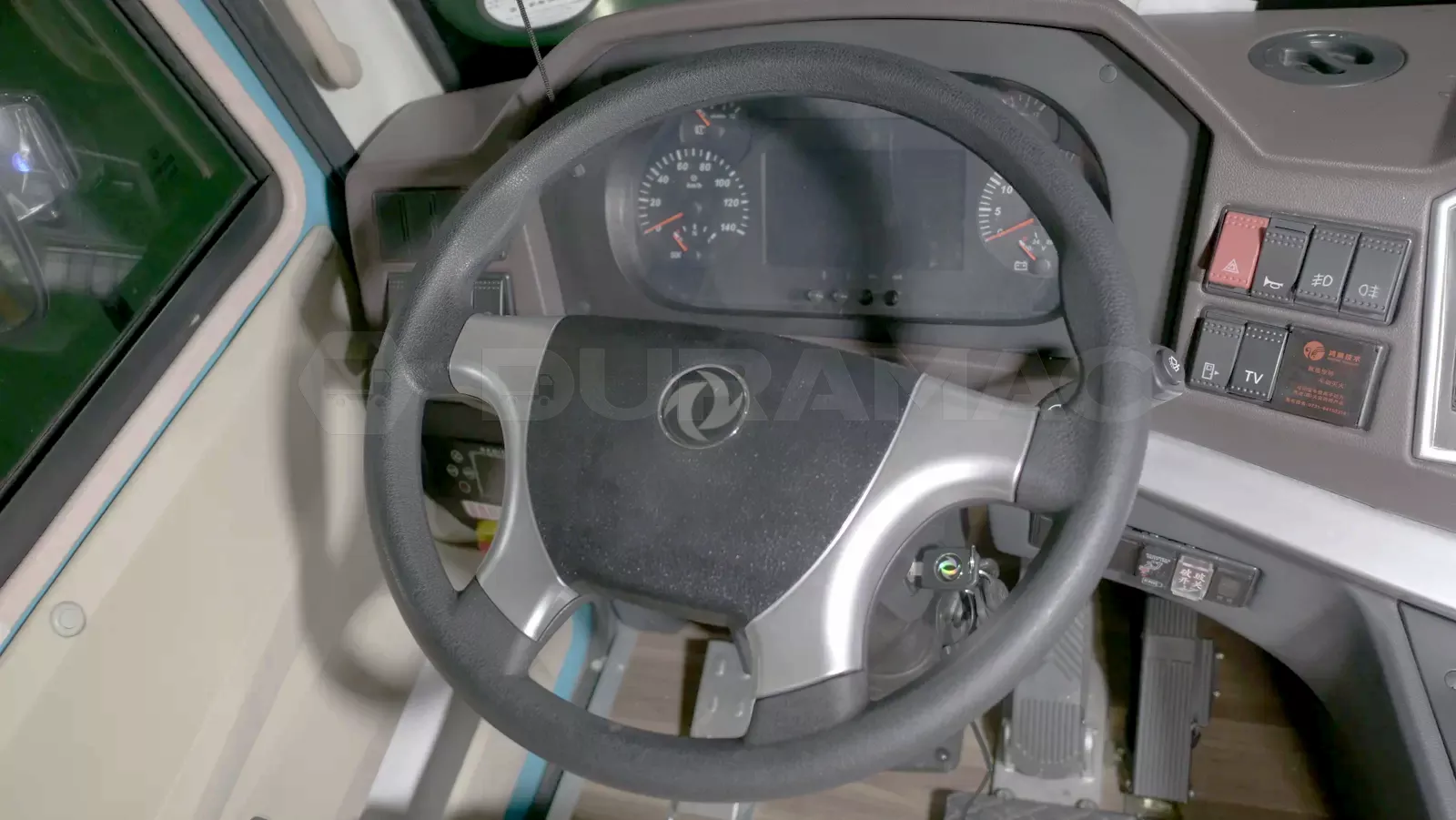

| Steering | Steering wheel, hydraulic power steering | — — | |||
| Drive shaft | 1 section | — — | |||
| Brake | Front plate and back plate | — — | |||
| Braking | Brake, dryer, condenser, self-adjusting arm, andBrake Shoe Wear Indicator | — — | |||

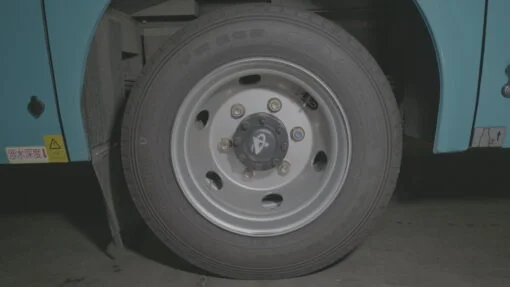

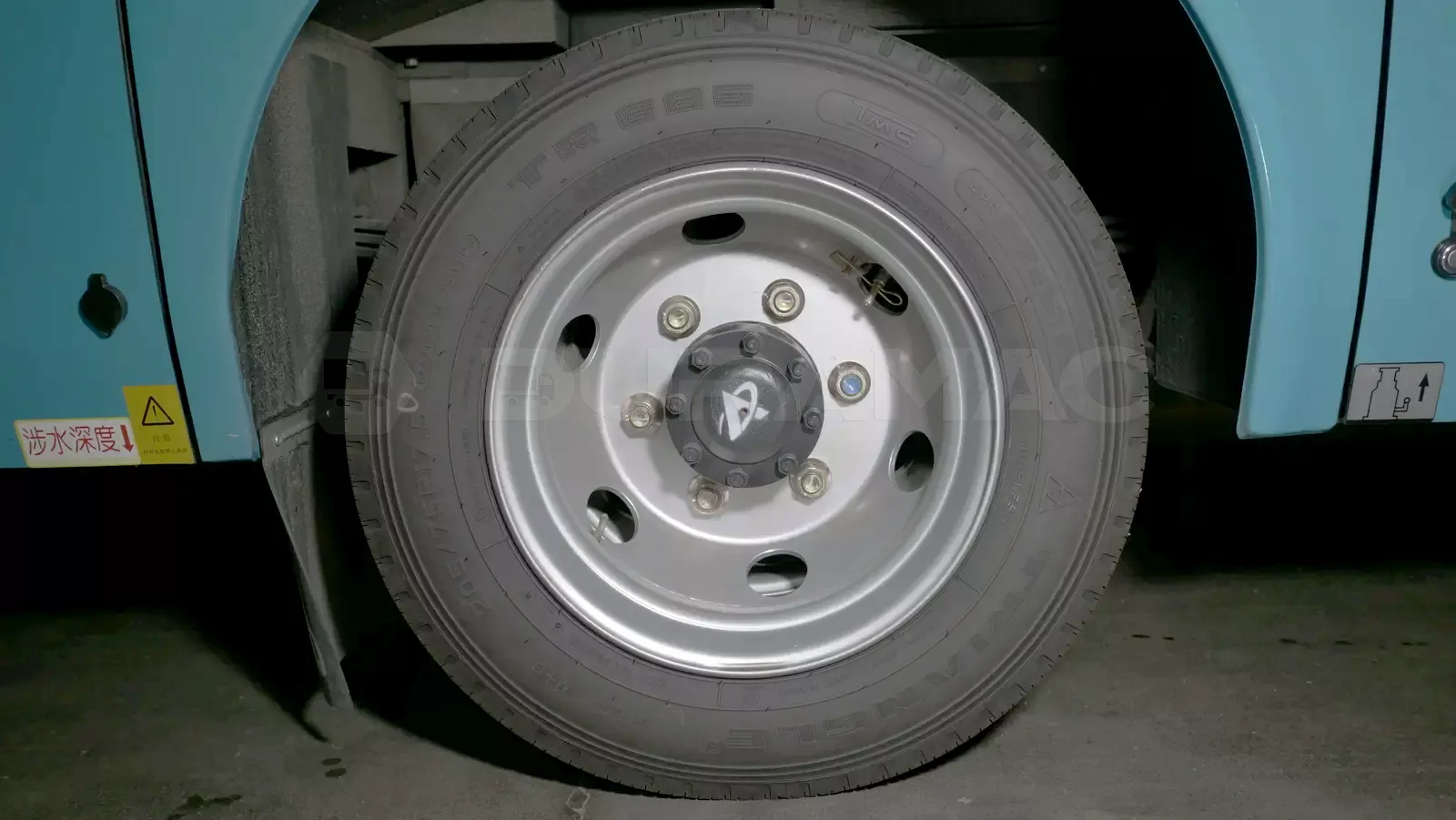

| Tire | 205/75R17.5-14PR without spare tire | — — | |||
| Air compressor | Oil piston engine | Oil-free piston | |||
| Others | Electronic fan, tire pressure monitoring, Kemi ABS+ESC | Kemi AEBS, centralized lubrication | |||
| ——END—— | |||||
Chassis Parameters and Configuration | ||
| Item | Standard Configuration | Optional configuration |
| Body structure | Front and rear enclosures formed by stamping | — — |
| Interior Trim | Air – conditioned interior | — — |
| Floor | Bamboo-woven floor | PVC floor |
| Route Sign | — — | — — |

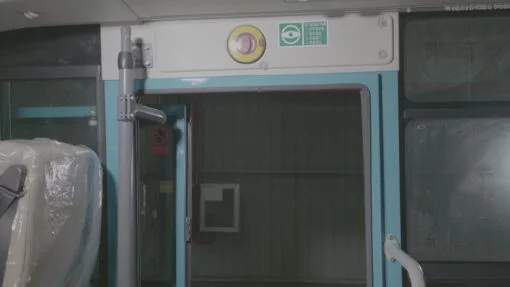

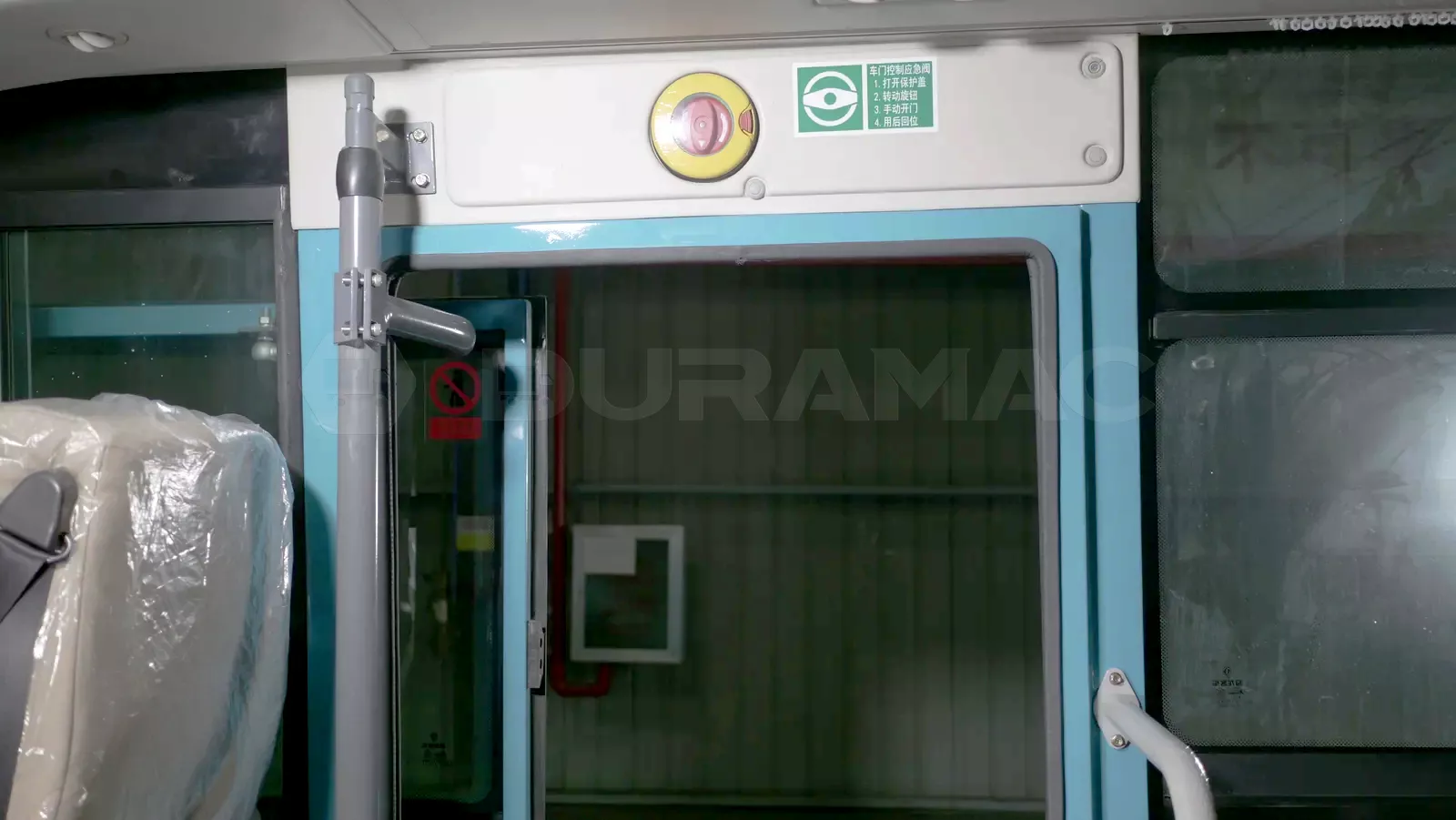

| Vehicle Door and Door Pump | Pneumatic outward – swinging door with anti – pinch device | Folding door |
| Side Windows | The driver’s window is an aluminum-framed sliding and pulling window; the rest are built-insliding and pushing windows, color F green | The two side windows (emergency exits) on the left and right are built – in sliding windows; the rest are aluminum – framed sliding windows, colored F green. |
| Windshield | Front windshield is tempered; rear windshield is toughened | — — |
| Rearview System | Inner rearview mirror, rod – type rearview mirror | Rabbit – ear mirror |

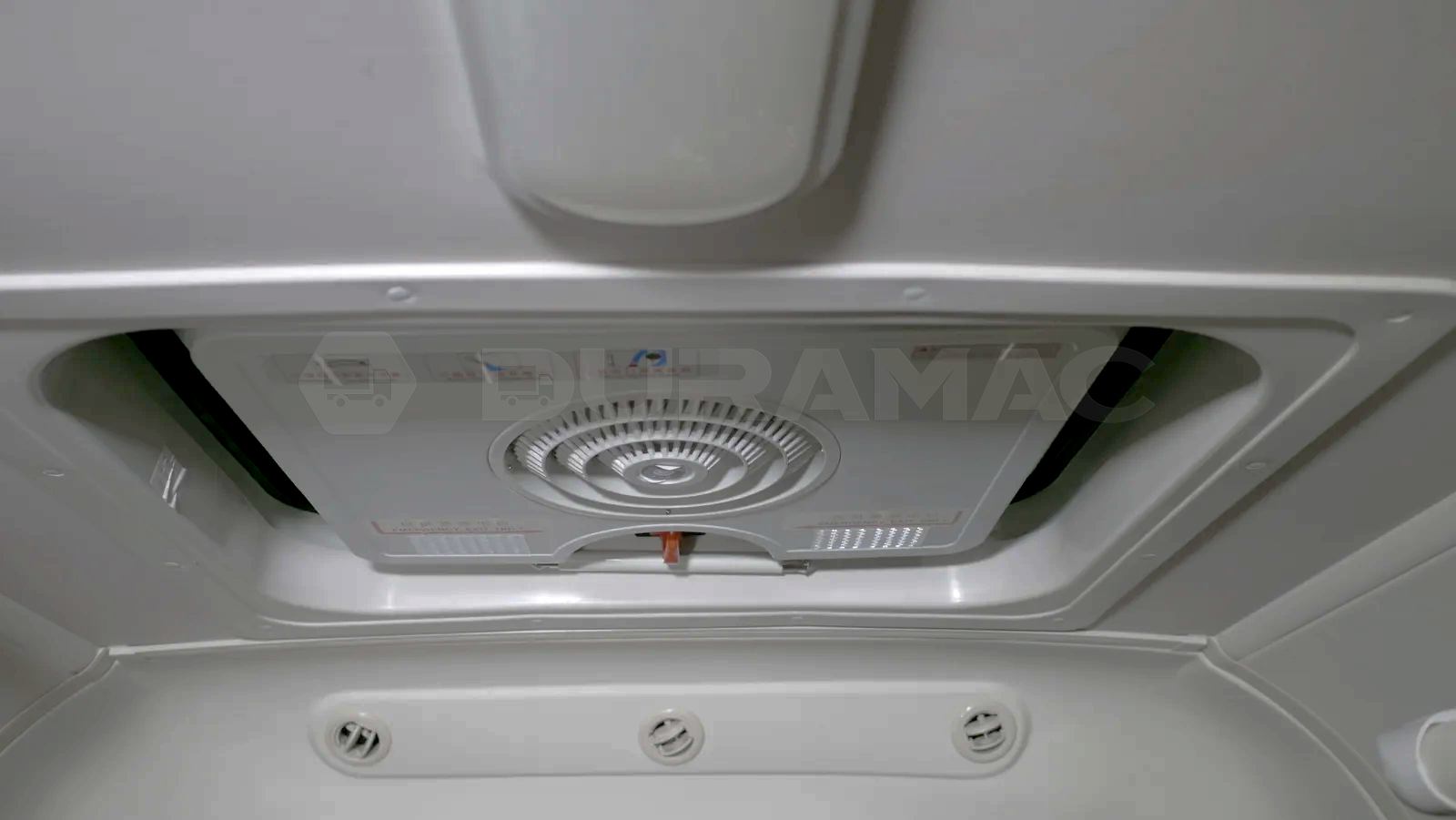

| Air Conditioning System | Roof-mounted electric single-cooling air conditioner | Cooling and heating air – conditioning, battery cooling (battery cooling is canceled in regions where the maximum temperature in previous years is lower than 35°C) |
| Heating System | — — | Electric heating, fuel oil heater hot water heating |
| Defroster | Electric defroster | — — |

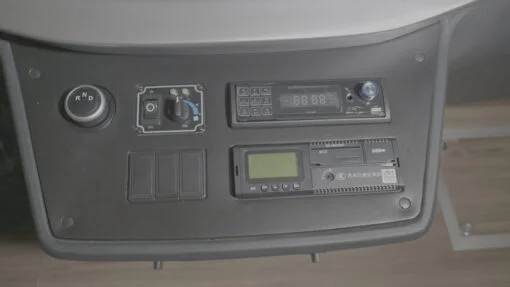

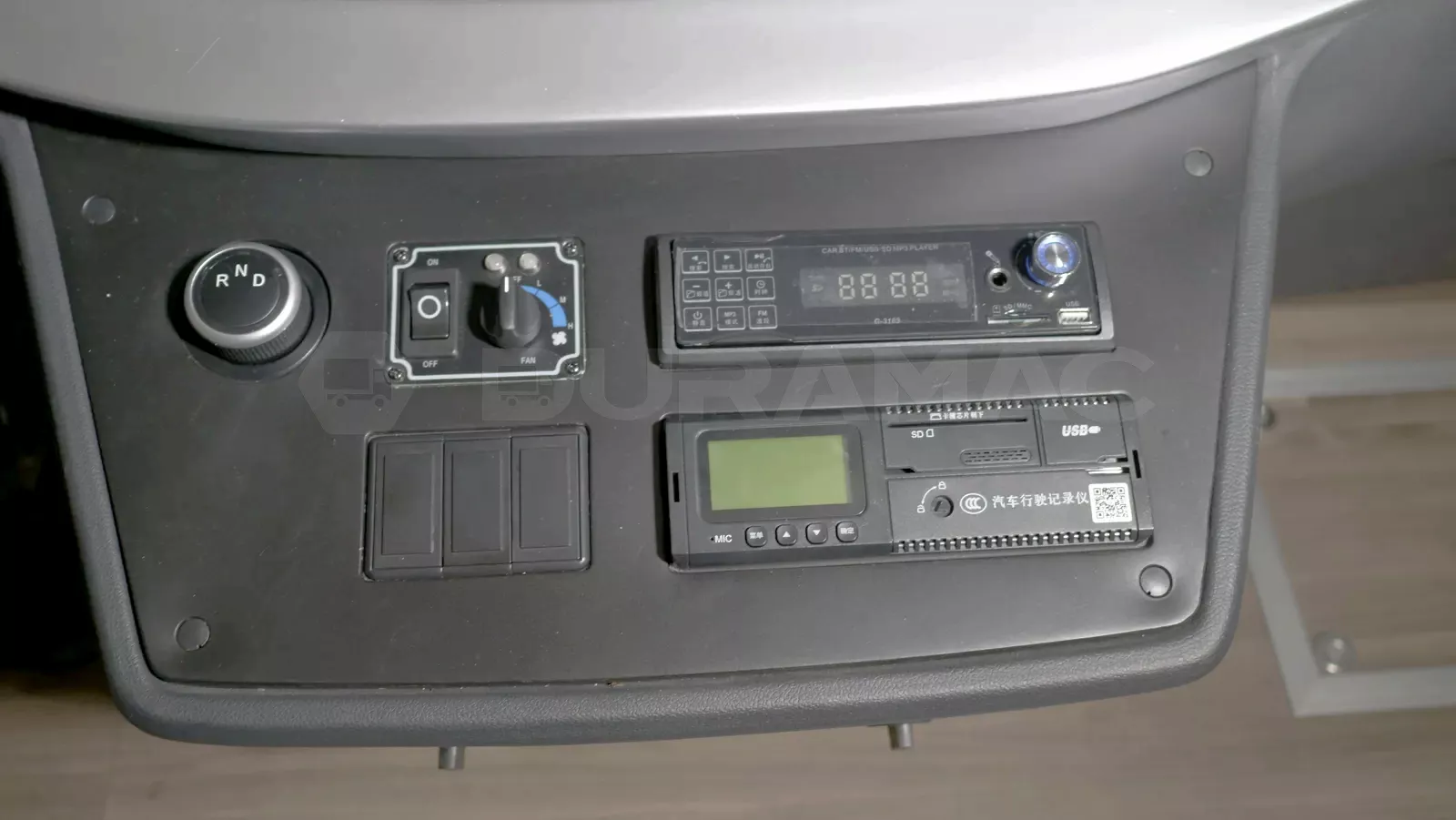

| Audio-Visual System | MP3 player with microphone jack, USB charging interface | — — |
| Satellite Positioning System | Beidou – GPS driving recorder with built – in camera, with storage and upload functions (dual 32G SD cards), 5 cameras + 7 – inch LCD display (1. Monitor the driver’s cab; 2. Monitor the passenger doors; 3. Monitor the passenger area from front to back; 4. Monitor the front road; 5. Reverse monitoring). | When there is no AEBS function, a driving recorder with a front – mounted camera can be optionally installed to realize lane departure warning function and collision warning function. |
| Lamps | Front and rear combination lamps (front headlight brightness adjustment) | — — |
| Wiper | Opposed wiper type | — — |
| Cabin Door | Aluminum alloy battery compartment door | — — |

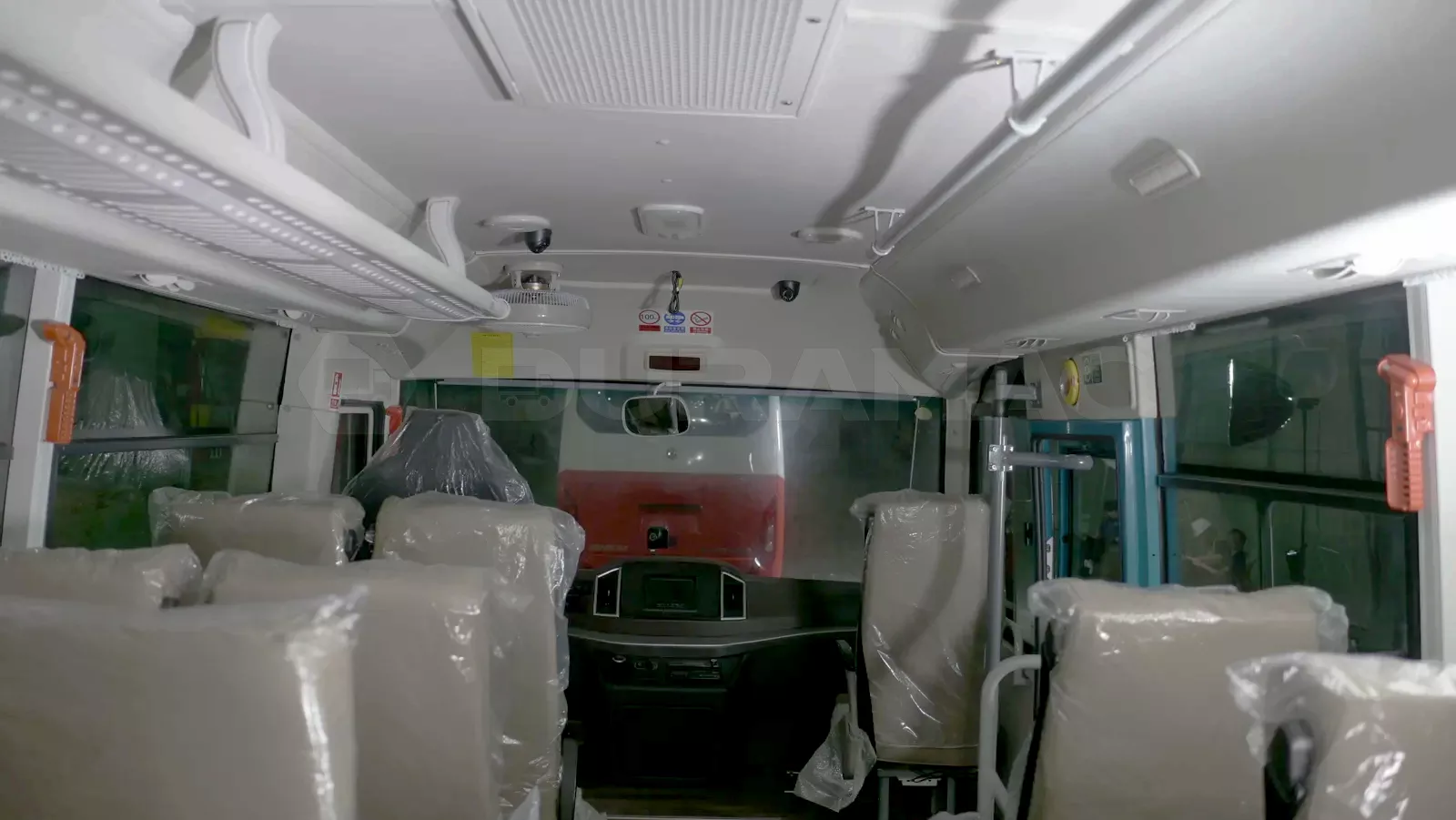

| Seats | 2 + 1 arrangement, 19 seats, medium – grade passenger seats (press – down armrests), the driver’s seat is adjustable up and down; the seats on the side of the aisle are marked with armrests | Medium – grade seats (pull – out armrests) |
| Paint | Domestic pigment paint | — — |
| Instrument | CAN instrument with one module | — — |
| Others | Speed limit 99km/h; Fire extinguisher in the battery box, integrated fire extinguisher for the electrical compartment (manual and automatic), 2 pieces of 6 – QW – 80MF2, Imitation wood floor covering, high – low floor, half – roll curtain – type sunshade, 1 fire extinguisher (4KG), 5 safety hammers, Full – vehicle safety belts (partially three – point type), Full – vehicle voice alarm (driver’s cab light alarm), Low – speed alarm, DC816A – type skylight, Vehicle horn, Mechanical flip switch, Emergency opening for interior, exterior and passenger doors near the driver, Upper handrails, Luggage compartment restraint (with lanyard), Rear windshield and left and right emergency windows with automatic glass breakers. | AEBS function (front collision warning, lane departure warning), 360° surround view function, Passenger door remote control, Fatigue driving monitoring; Dot or ordinary floor covering, Folding side windows, Full – vehicle sunshade, DC816B – type skylight, Aisle carpet, Remote control lock, Electronic clock with temperature display; When an independent fuel oil heater is optionally installed, one luggage compartment is reduced. |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
