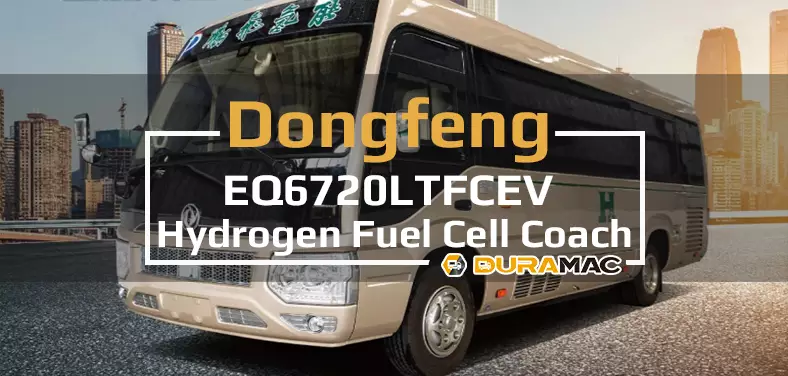

EQ6720LTFCEV丨Dongfeng Hydrogen Fuel Cell Coach
EQ6720LTFCEV is a hydrogen fuel cell bus developed by Dongfeng Special Automobile Co., Ltd. It is 6.72 meters long and is positioned in medium-sized cities or urban-rural connection scenarios. Its core power system uses a hydrogen-air proton exchange membrane fuel cell, coupled with a permanent magnet synchronous motor to achieve zero-emission operation. The vehicle has a curb weight of approximately 5950-6100kg (the upper limit increases when air conditioning is optional), a rated passenger capacity of 24-28 people, a maximum speed of 69km/h, and a wheelbase of 3650mm, taking into account flexibility and passenger efficiency. The vehicle is equipped with an ABS braking system and a satellite positioning recorder as standard, and can be equipped with air conditioning, ventilation skylight, and a customized side window structure to meet diverse operational needs.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. At the same time, the electrification of automobiles is a certain future; DuraMac also gets involved with the EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6720LTFCEV
The fuel cell system has a complete and reliable structure, using permanent magnet synchronous motors and integrated controllers, which are safer and more efficient.
The vehicle instrument can display the relevant data information, alarm information, and communication status of the electronic control system, battery system, motor system, electrical accessory system, and fuel cell in real time, and can promptly alarm the driver when there is insufficient residual hydrogen pressure or fuel cell system failure.
Using GPS and GPRS network technology, remote monitoring, data collection, data analysis, safety warning, fault diagnosis, etc., of new energy vehicles can be realized to improve the safety of vehicle operation.
Technical Specifications
| Total Length (mm): | 7235 |
| Total Width (mm): | 2240 |
| Total Height (mm): | 2850(Built-in air conditioning) |
Interior ceiling height(mm): | 1850 |
| Wheelbase (mm): | 3935 |
| Front Overhang/Rear Overhang (mm): | 1160/2140 |
| Approach/Departure Angle (°): | 19/11 |
| Rated Total Mass (kg): | 7600 |
Rated capacity(persons): | 10-19 |
| Maximum Speed (km/h): | 100 |
Track width(mm): | 1880,1900/1570,1595 |
- Hydrogen Fuel Cell Coach series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6110LTFCEV | 10990 | 2550 | 3600 | 100 | 18000 |
| EQ6720LTFCEV | 7235 | 2240 | 2850 | 100 | 7600 |
| EQ6900LTFCEV | 8995 | 2500 | 3540,3350 | 100 | 14500 |
| ——END—— | |||||
Basic information of Dongfeng EQ6720LTFCEV motor | |||||
| Motor Model | TZ280XS-HD001 | Motor manufacturer | |||
| Drive motor controller model | KTZ54X42S2139 | Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power of motor (kw) | 70KW/150kW | Total battery capacity (kWh) | Suzhou Xinzhong Lithium Manganese Oxide Battery, 30.46kWh | ||
| Hydrogen cylinder capacity L | 3X140L | Hydrogen cylinder manufacturer | Zhejiang Blue Energy | ||
| ——END—— | |||||
Standard / Optional Configuration | ||
| Item | Standard Configuration | Optional configuration |
| Bearing type | Full load structure | — — |
| Front Axle | Hande 3.5T, disc brake, ordinary wheel end | Maintenance free wheel end |
| Rear Axle | Hande 5.5T, electric drive integrated axle, disc brake, ordinary wheel end | Maintenance free wheel end |
| Suspension | Non independent air suspension, front 2 rear 4 air suspension | — — |
| Steering | Integrated hydraulic power steering gear; Four spoke steering wheel with an outer diameter of 390mm | — — |
| Brake | Equipped with energy storage spring braking, motor energy feedback assisted braking, ABS anti lock, dual circuit air braking; Electric control main valve, quick release valve, four-way press, functional dryer, relay valve, differential relay valve, automatic drain valve, safety valve; The drain switch of the air storage cylinder is led to the | — — |
| Tire | Tubeless radial tire, 215/75R17.5, 6 tires, no spare tire; Steel wheel rims; Front tire pressure monitoring and alarm system; | Aluminum alloy wheels, stainless steel wheel covers |
| Other | Front towing hook, pin type; Equipped with 1 reflective vest, 2 triangular wooden blocks, and 1 triangular warning sign; Lead acid maintenance free battery (voltage 12V, capacity 100Ah, 2 units) | — — |
| ——END—— | ||
Chassis Parameters and Configuration | |||||
| Item | Standard Configuration | Optional configuration | |||
| Body structure | Fully stamped pentagonal body frame, stamped skin | — — | |||
| Interior | Integral molded luxury dashboard: 5mm polypropylene honeycomb panel with leather inner panel; 8mm polypropylene honeycomb panel covered with leather top plate; PVC molded air duct; Whole formed front and rear inner tops covered with leather | Whole car soft package interior | |||
| Floor | PVC board (thickness 18mm); Quartz sand floor leather | — — | |||
| Car doors and door pumps | Electric lift type swing door without remote control; Electric telescopic step | — — | |||
| Side window | Side window with overall adhesive tempered glass, embedded front and rear double opening sliding driver’s window | — — | |||
| Windscreen | Front laminated windshield, rear tempered windshield | — — | |||
| Rear view system | Rod style rearview mirror, short on the left and long on the right, with a small circular mirror on the right side | — — | |||
| Air-conditioning system | Built in air conditioning, single cooling electric air conditioning (14000 kcal) | — — | |||
| Heating system | — — | Electric warm air | |||
| Defroster | Electric defrosting | — — | |||
| Audiovisual system | Equipped with microphone and DVD player (supports SD card and USB flash drive playback); 12.3-inch color LCD central control screen, integrated reverse image; | — — | |||
| Satellite positioning system | Driving recorder/car recording system: 1 camera in front of the car, 1 camera for the driver, 1 camera in the middle door, and 1 camera inside the car; Equipped with car recording function, 128GSD card, GPS satellite positioning function, integrated printer, USB interface | — — | |||
| Lamps and Lanterns | Front and rear combination headlights; LED interior ceiling lights (single unit lights, 3 pieces); 1 step facade light and 1 door top light; LED Rear Cabin Lighting | — — | |||
| Windshield wiper | Opposed Wiper System | — — | |||
Cabin door | Aluminum alloy cabin door | — — | |||
| Seat | Driver’s seat: synthetic leather, mechanical shock absorber, six way adjustable, three-point seat belt (with driver’s departure alarm and seat belt alarm); Equipped with USB interface; Imitation leather, 18 pieces, seat belt alarm function, no lateral movement, no foot pedal; | Airbag driver’s seat, passenger area seat headrests | |||
| Paint | Domestic solid color paint (pattern according to customer requirements) | Metallic paint | |||
| Meter | 12.3-inch LCD instrument panel, CAN bus | — — | |||
| Other | One set of flip type front sunshades for the driver and passenger respectively; Square shaped interior rearview mirror (convex mirror); Circular ventilation fan: 1 4KG portable ABC dry powder fire extinguisher; 4 emergency hammers; Interior heat insulation and noise reduction materials (foaming materials, local sponges, aerogel heat insulation felt, floor damping noise reduction plate); High and low frequency electric speakers (1 each); 4 car interior speakers: equipped with temperature and humidity display digital electronic clock; Slow release cylindrical fire extinguisher: | — — | |||
| ——END—— | |||||
