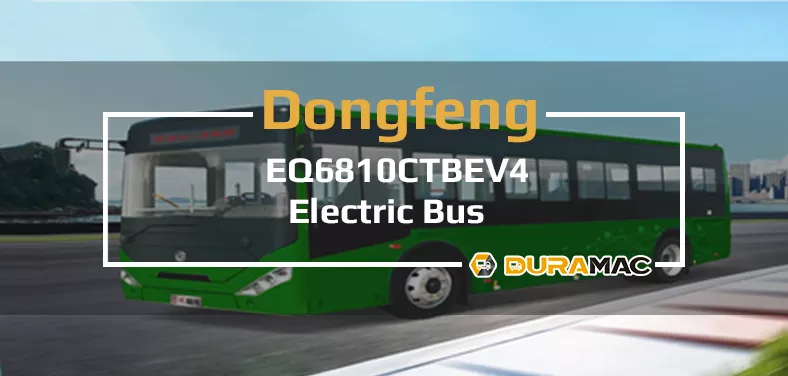

EQ6810CTBEV4 | Dongfeng electric bus
The Dongfeng EQ6810CTBEV4 pure electric city bus features a monocoque chassis and is equipped with a TZ260XSXL540700A permanent magnet synchronous motor manufactured by Hubei Green Mobility Precision Electric Drive System Co., Ltd., and a 151.7kWh battery manufactured by CATL (Contemporary Amperex Technology Co., Limited). The motor is rear-mounted, and it has a 4×2 rear-wheel drive configuration.
The EQ6810CTBEV4 pure electric city bus utilizes a new type of permanent magnet synchronous motor, characterized by high efficiency and high torque. The vehicle design was optimized based on urban operating conditions, fully leveraging the characteristics of the motor system, resulting in stable power output and leading energy consumption levels in China. Independently designed and developed since June 2019, the first batch of products was delivered to customers in November 2019, suitable for operation in large and medium-sized cities.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. While the electrification of automobiles is a certain future, DuraMac also gets involved with EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6810CTBEV4
Technical Specifications
| Total Length (mm): | 8060 |
| Total Width (mm): | 2260 |
| Total Height (mm): | 2860,2990 |
| Interior ceiling height(mm): | 2050/1870 |
| Wheelbase (mm): | 4400 |
| Front Overhang/Rear Overhang (mm): | 1790/1870 |
| Approach/Departure Angle (°): | 8/10 |
| Rated Total Mass (kg): | 12500 |
| Rated capacity(persons): | 54/15-29 |
| Maximum Speed (km/h): | 69 |
| Track width(mm): | 1835/1700 |
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP. The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio. Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment. Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost. The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg. The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.DuraMac
Fast Gear
EV Truck
DANA Axle
Datong Gear
Crane Trucks
- Electric Bus Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6810CTBEV4 | 8060 | 2260 | 2860,2990 | 69 | 12500 |
| EQ6601CTBEV2 | 6020 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6580CTBEV | 5800 | 2100 | 2640,2760,2850 | 69 | 5300 |
| EQ6105CTBEV9 | 10490 | 2500 | 3020/3060/3260 | 69 | 18000 |
| EQ6603CTBEV1 | 5990 | 2100,2160 | 2770/2820/2910 | 69 | 8500 |
| EQ6810CTBEV6 | 8060 | 2260 | 2860,2990 | 69 | 12500 |
| EQ6850CTBEV2 | 8540 | 2500 | 3050,3090,3250 | 69 | 14000 |
| EQ6105CTBEV8 | 10490 | 2500 | 3020/3060/3260 | 69 | 18000 |
| ——END—— | |||||
Basic information of Dongfeng EQ6810CTBEV4 motor | |||
| Motor Model | TZ260XS-L540700A | Motor Manufacturer | Hubei / Luchi Precision Electric Drive System Co., Ltd. |
| Location / Fuel Type | Rear-mounted / Lithium Iron Phosphate Battery (LFP Battery) | Motor Type | Permanent Magnet Motor (PMM) |
| Motor Rated / Peak Power (kW) | 70/120 | Rated / Peak Torque (N.m) | 167/550 |
| Total Battery Capacity (kWh) / Voltage (V) | Contemporary Amperex Technology Co., Limited (CATL) 151.7/502.32 | Total Electric Range (40km/h Constant Speed Method) | 330 km |
| ——END—— | |||
Standard / OptionalConfiguration | ||
| Item | Standard Configuration | Optional Configuration |
| Front Axle | Dongfeng Dana Axle | — — |
| Rear Axle | Dongfeng Dana Axle | — — |
| Suspension | Leaf Spring Suspension (Front 3/4) | — — |
| Shock Absorber | Telescopic Shock Absorber | — — |
| Steering | Hydraulic Power Steering | — — |
| Drive Shaft | 1 Section | — — |
| Brake | Front Disc Rear Drum | Front Disc Rear Disc |
| Braking | Air Brake, Dryer, Cooler, ABS, Automatic Adjuster, Brake Pad Wear Warning | — — |
| Tire | 245/70R19.5-16PR (Without Spare Tire) | Tire Pressure Monitoring |
| Air Compressor | Oil-free Air Compressor | — — |
| Others | Electric Fan | Central Lubrication |
| ——END—— | ||
Chassis Parameters and Configuration | ||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Full- integral，High-strength Steel Frame, Front and Rear Enclosure Formed by Leather-covered Pressing | Panoramic Aluminum Air Duct, Advertising Light Box, Ceiling Ring |
| Interior | Ordinary Interior, Full Vehicle Handrails, Driver’s Cab Protection and Isolation Facility | PVC Floor |
| Floor | Bamboo-wood Floor | LED Route Sign, Light Box Route Sign |
| Route Sign | —— | —— |
| Door and Door Frame | Front Single, Double-cylinder Pneumatic Inward-swinging Passenger Door | —— |
| Window Curtain | Driver’s Cab with Aluminum Alloy Push-pull Window, Other Cabins with Pull-pull Curtain, Color P Green | —— |
| Windshield | Front Laminated Glass, Rear Tempered Glass | —— |
| Rearview System | Steel Frame Type Non-powered Manual Rearview Mirror | —— |
| Air Conditioning System | Roof-mounted Electric Air Conditioner (Single Cooling) | Roof-mounted Electric Cooling and Heating Air Conditioner, Battery Thermal Management System |
| Heating System | —— | Electric Heating |
| Defroster | Electric Defroster | —— |
| Audio-visual System | MP3 Player with Microphone Jack, USB Charging Interface | MP4 or MP5 Video Player, MP3 Player; Optional U Disk or SD Card, 17-inch LCD Display; 19-inch LCD Display |
| Satellite Positioning System | Beidou Satellite Positioning Driving Recorder with Built-in Storage and Upload Function (Dual 32GSD Card), 5-probe 7-inch LCD Display (1. Monitor Driver, 2. Monitor Upper Passenger Door, 3. Monitor Rear Passenger Area from Front to Rear, 4. Monitor Front Road, 5. Reverse Monitoring, 6. Lower Passenger Door) | External Printer; Multi-channel Video Recording System with (32GSD Card + 6-probe 7-inch LCD Display) |
| Lamps | Front and Rear Split Headlights, Front and Rear Fog Lights, Steering Lights, Low Beam Height Adjustment Device | —— |
| Wiper | Opposed Type | —— |
| Door | Aluminum Alloy Battery Compartment Door | —— |
| Seats | Shock-absorbing Driver’s Seat, Driver’s Seat Adjustable Up and Down, Ordinary Bus Seats 22+1, Driver’s Seat Safety Belt with Alarm | —— |
| Paint | Domestic Color Paint, Pattern and Color According to Customer Requirements | Metallic Paint |
| Instrument | CAN Instrument with 2 Whole Vehicle Meters | —— |
| Others | 4KG Fire Extinguisher × 2, 6-channel Safety Hammer, Emergency Switch for Indoor, Outdoor Passenger Doors, DC890A Skylight, 6-QW-80 × 2, Half-roller Curtain Type Sunshade Curtain, On-board Terminal, 5 Electric Switches + 1 Fire Extinguisher, Low Voltage Alarm, Quartz Sand Floor Mat, Fuse Self-recovery Module under Driver’s Cab | Side Curtain, DC890B Skylight, Lower Door Bell, Coin Machine, Electronic Ticketer, Quartz Sand Wear-resistant Floor Leather, Driver’s Fan, Aluminum Plate at Driver’s Foot Pedal |
| ——END—— | ||
