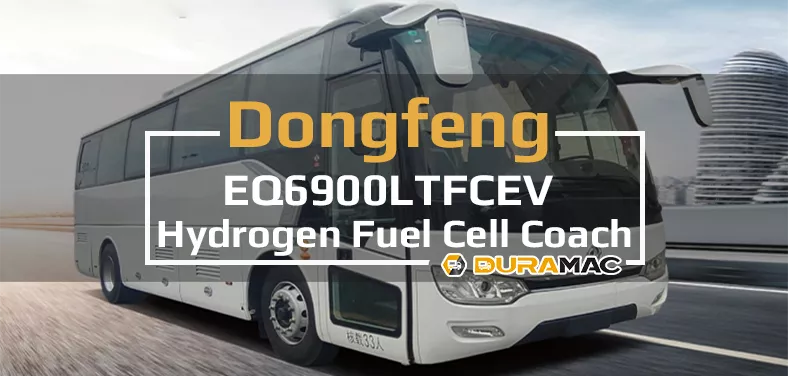

EQ6900LTFCEV 丨 Dongfeng Hydrogen Fuel Cell Coach
EQ6900LTFCEV is a medium-sized fuel cell bus developed by Dongfeng Special Automobile Co., Ltd. It is 8995mm long, 2500mm wide, 3540mm high, and has a total mass of 14500kg. It is suitable for urban feeder buses or shuttles. The vehicle is equipped with a hydrogen-air proton exchange membrane fuel cell and a lithium iron phosphate battery pack, and is equipped with a permanent magnet synchronous motor (peak power 260kW), achieving zero-emission operation and a maximum speed of 100km/h. The vehicle has a rated passenger capacity of 25-33 people, a curb weight of 10900-11650kg, and a wheelbase of 4780mm. Its technical route takes into account both endurance and environmental protection performance, reflecting Dongfeng’s strength in the large-scale application of hydrogen energy buses.
As part of EMAC, DuraMac provides a complete powertrain that integrates with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle, and Komman air suspension. At the same time, the electrification of the automobile is a certain future, Duramac also gets involved with EV powertrain systems.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of EQ6900LTFCEV
The fuel cell system has a complete and reliable structure, adopts a permanent magnet synchronous motor and an integrated controller, which is safer and more efficient. The fuel cell engine and electronic control system are centrally arranged and isolated from the passenger compartment. The partition area is paved with fire-retardant materials, and key parts are equipped with hydrogen leakage and smoke detection safety devices.
Intelligent safety monitoring system: It can realize real-time monitoring of energy storage components, vehicle high-voltage terminals, motors, fuel cell engines, and other components, and can alarm and deal with them accordingly to ensure the safety of the vehicle.
The vehicle instrument can display the electronic control system, battery system, motor system, electrical accessory system, and fuel cell-related data information, alarm information, and communication status in real time, and can promptly alarm the driver when there is insufficient residual hydrogen pressure or fuel cell system failure.
Use GPS and GPRS network technologies to realize remote monitoring, data collection, data analysis, safety warning, fault diagnosis, etc. of new energy vehicles to improve vehicle operation safety; establish an operation data monitoring system, optimize operation efficiency, and provide information value-added services for vehicle operations.
Technical Specifications
| Total Length (mm): | 8995 |
| Total Width (mm): | 2500 |
| Total Height (mm): | 3540 (Air – conditioned),3350 |
Interior ceiling height(mm): | 1920 |
| Wheelbase (mm): | 4780 |
| Front Overhang/Rear Overhang (mm): | 1905/2310 |
| Approach/Departure Angle (°): | 12/11 |
| Rated Total Mass (kg): | 14500 |
Rated capacity(persons): | 33 |
| Maximum Speed (km/h): | 100 |
Track width(mm): | 2030,2060,2090/1850,1880 |
- Hydrogen Fuel Cell Coach series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Transmission Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6110LTFCEV | 10990 | 2550 | 3600 | 100 | 18000 |
| EQ6720LTFCEV | 7235 | 2240 | 2850 | 100 | 7600 |
| EQ6900LTFCEV | 8995 | 2500 | 3540,3350 | 100 | 14500 |
| ——END—— | |||||
Basic information of Dongfeng EQ6900LTFCEV motor | |||||
| Motor Model | TZ400XS-M135-01 | Motor manufacturer | |||
| Drive motor controller model | KTZ58X56S-A200-03 | Motor type | Permanent magnet synchronous motor | ||
| Rated/peak power of motor (kw) | 135KW/260kW,Protection level ≥ IP68 | Total battery capacity (kWh) | Ningde Times Lithium Iron Phosphate Power Battery, with a battery capacity of 95.25kWh and a protection level>IP68 | ||
| Hydrogen cylinder capacity L | 4×260 | Hydrogen cylinder manufacturer | Zhongcai Technology (Chengdu) Co., Ltd | ||
| ——END—— | |||||
Standard / Optional Configuration | |||||
| Item | Standard Configuration | Optional configuration | |||
| Bearing type | Fully loaded | — — | |||
| Front Axle | Dongfeng Dena axle, maintenance free wheel end | — — | |||
| Rear Axle | Electric drive bridge, new energy dedicated rear axle main reducer, maintenance free wheel end | — — | |||
| Suspension | Front 2 and rear 4 air suspension, imported brand shock absorbers | — — | |||
| Shock absorber | Suspension comes with built-in | — — | |||
| Steering | Circular ball steering, hydraulic power steering, steering wheel diameter of Φ 480mm | — — | |||
| Transmission shaft | Section 1, universal joint drive shaft | — — | |||
| Brake | Front and rear disc brakes, equipped with brake wear alarm and automatic adjustment arm, air pressure dual pipeline, nylon tube, ESC， Electronic parking, intelligent water release valve. | — — | |||
| Tire | 255/70R22.5-16PR， Aluminum alloy wheels, Bridgestone vacuum radial tires, tire pressure warning device and tire explosion-proof device, with spare tire | — — | |||
Air Pump | Oil free piston pump, protection level ≥ IP67 | — — | |||
| Other | Front trailer hook, wheel stop block | — — | |||
| ——END—— | |||||
Chassis Parameters and Configuration | ||
| Item | Standard Configuration | Optional configuration |
| Body structure | Load bearing body structure, concave convex floor | — — |
| Interior | Leather covered panels, molded air ducts, luggage racks on both sides of the car, integrated reading lights and air vents | Corridor, luggage rack handrails, hangers, atmosphere lights on both sides of the middle roof |
| Floor | Bamboo woven flooring, imitation wood grain flooring leather | PVC flooring |
| Road signs | LED road signs | — — |
| Car doors and door pumps | Aluminum alloy pneumatic swing door with remote control lock, left safety door | — — |
| Side Windows | The driver’s side window and side window are embedded sliding windows, with one sliding window installed on each side; The front gear, rear gear, driver’s side window, and passenger door glass are white, while the rest are F-green | — — |
| Windscreen | front laminated windshield, rear tempered windshield | — — |
| Rear view system | Dual ear free electric rearview mirror with electric heating function | — — |
| Air-conditioning system | — — | Top mounted electric cooling and heating air conditioner, integrated cooling and heating air conditioner, cooling capacity ≥ 24000Kcal/h |
| Heating system | — — | — — |
| Defroster | Electric defroster | Electric warm air |
| Audiovisual system | MP3 player with microphone jack and USB charging port at the driver’s location | — — |
| Satellite positioning system | Multi channel video recording system with (32GB SD card+6 probes+7-inch LCD display), 500g hard drive, Beidou satellite positioning driving recorder | Equipped with external printing function |
| Lamps and Lanterns | Front and rear combination lighting fixtures, front and rear fog lights, side turn signals, and electrically adjustable low beam height | — — |
| Windshield wiper | Opposed Wiper System | — — |
Cabin door | Battery box compartment door, rear compartment door, aluminum alloy battery box compartment door | — — |
| Seat | Airbag shock absorber driver’s seat, adjustable up and down, driver’s seat belt alarm; The whole vehicle is arranged in a 2+2 configuration, with adjustable backrests for mid-range passenger seats made of imitation leather fabric for road vehicles. All passenger seats are equipped with seat belts to meet operational regulations. | — — |
| Paint | Domestic solid color paint (pattern according to customer requirements) | Metallic paint |
| Meter | LCD instrument panel, three-level CAN bus | — — |
| Other | 2 4KG fire extinguishers, 7 safety hammers, emergency switches for both interior and exterior passenger doors, DC890B sunroof, 6-QW-802 blocks, half roll front sunshade, onboard terminal, low-speed alarm, light height adjustment device, quartz sand wear-resistant floor covering, passenger door bell, simple side window curtains with time and temperature display electronic clock, battery compartment with automatic fire extinguishing device, electrical conversion horn. | Passenger area high-speed train curtains, suspension rings, sunroof with air purification device, water dispenser, driver surround; Left luggage rack cover. |
| ——END—— | ||
